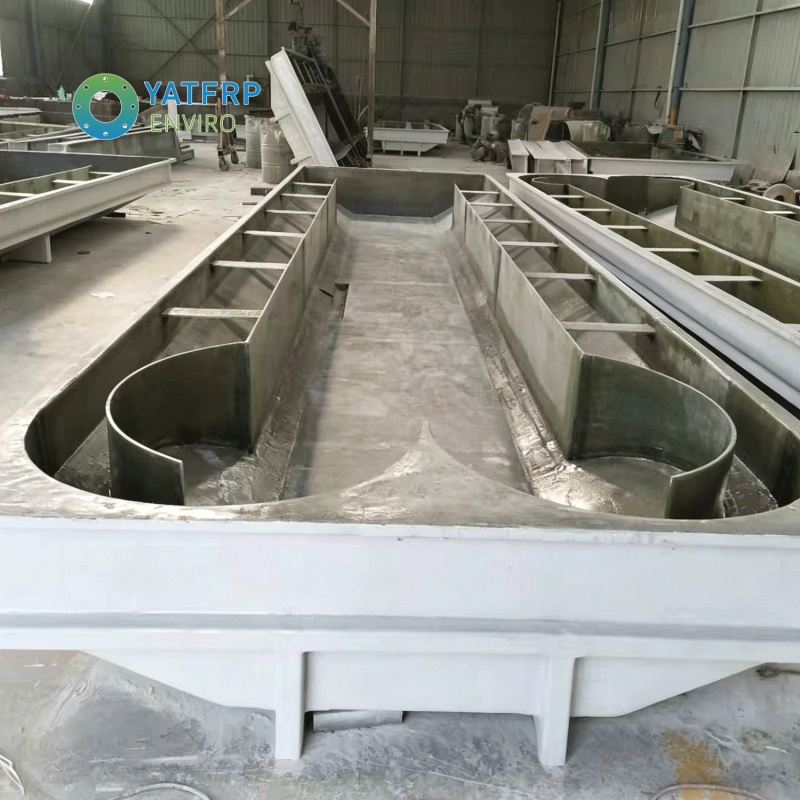

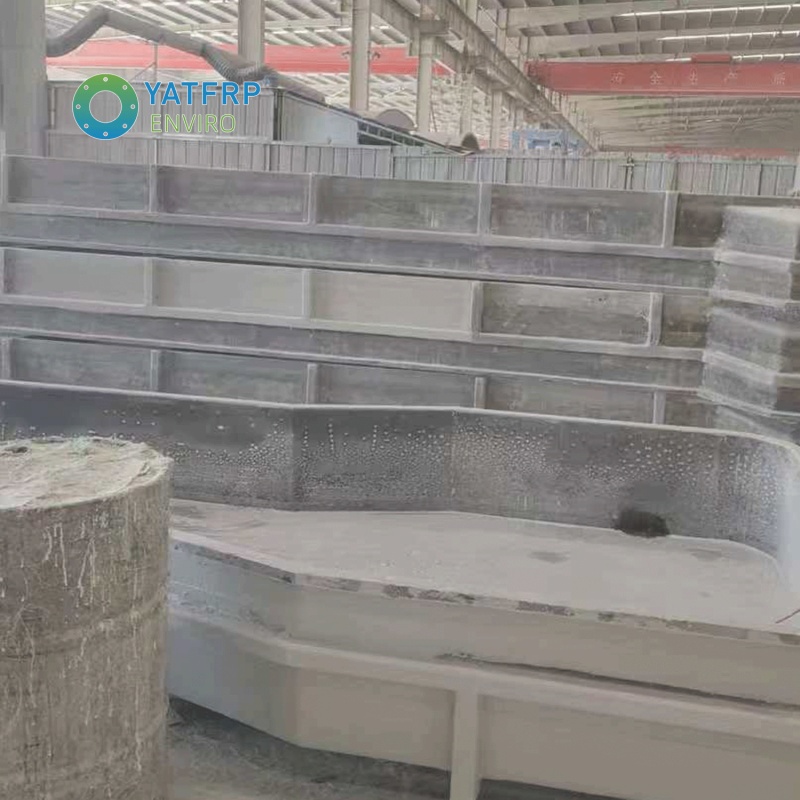

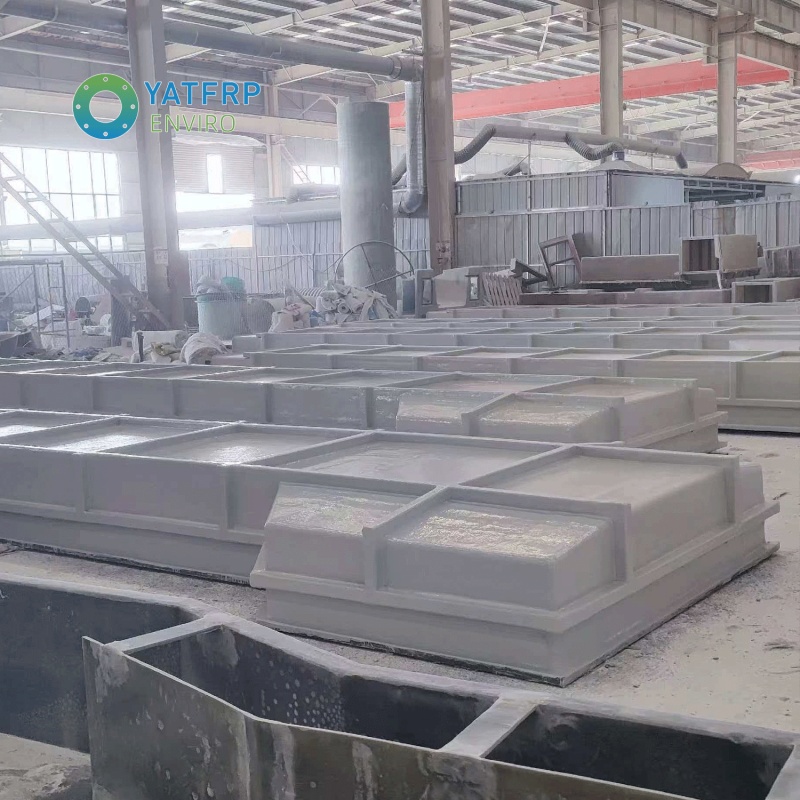

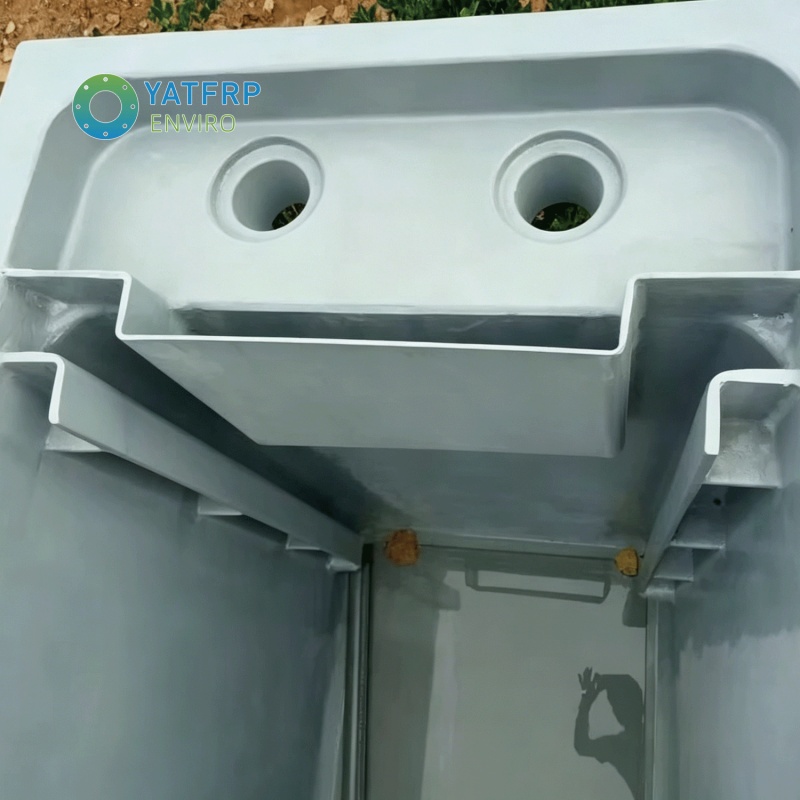

Core Advantages: Exceptional insulation performance to prevent electric leakage and short circuits during electrolysis; corrosion resistance to electrolyte solutions, compatible with various electrolyte systems including acids, alkalis and salts; lightweight and easy to install; and customizable tank structures to meet the requirements of electrode plate arrangement.

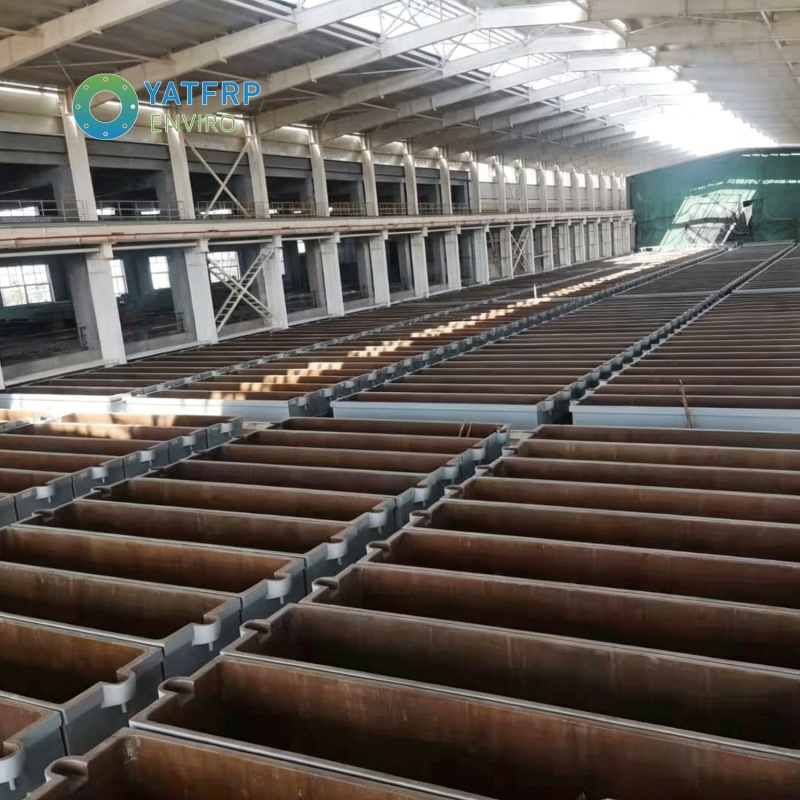

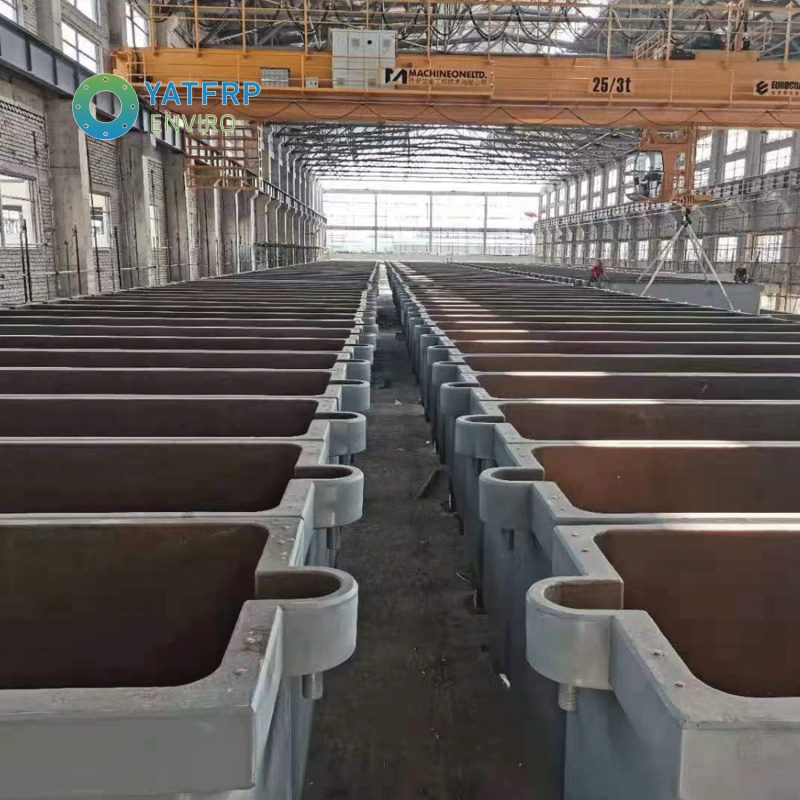

Typical Applications: Coating preparation in the electroplating industry, electrolytic refining of non-ferrous metals in the metallurgical industry, electrolytic treatment of wastewater in the environmental protection industry, and chemical production in the chlor-alkali industry.

1. Excellent Corrosion Resistance

Broad Medium Compatibility: Resistant to various highly corrosive media such as hydrochloric acid (concentration ≤ 30%), sulfuric acid (concentration ≤ 50%), nitric acid (concentration ≤ 20%), and hydrofluoric acid (concentration ≤ 10%).

Stable operating Range: Maintains long-term stability in corrosive environments with a pH value of 1–14, and has an operating temperature range of -30℃ to 80℃.

Superior Surface Protection: The inner surface is treated with a resin-rich layer, featuring a smooth and dense finish (Barcol hardness ≥ 40), which effectively prevents medium penetration.

2. Outstanding Mechanical Strength

High-Strength Structure: Tensile strength ≥ 200 MPa, flexural strength ≥ 150 MPa.

Excellent Load-Bearing Capacity: Design safety factor ≥ 8, ensuring no deformation or leakage during full-load operation.

Strong lmpact Resistance: Falling ball impact strength ≥ 20 J, effectively withstanding mechanical shocks during operation.

3. Long Service Life

Excellent Durability: Designed service life ≥ 15 years under standard corrosive conditions.

Anti-Aging Performance: Added with ultraviolet absorbers to prevent discoloration and chalking during outdoor use.

4. Cost-Effective Features

Lightweight yet High-Strength: Density ranges from 1.6–1.8 g/cm³, with weight only 1/4 that of steel and 1/3 that of carbon steel, enabling easy installation.

Maintenance-Free Design: Smooth surface prevents scaling; no regular anti-corrosion treatment is required, reducing maintenance costs by 70%.

5. Safety and Reliability

Integral Molding Process: Seamless tank connection, completely eliminating the risk of leakage.

Anti-Static Design: Surface resistivity of 10⁶–10⁹ Ω, effectively preventing electrostatic accumulation.

Structural Stability: Optimized via finite element analysis, with a seismic fortification intensity of up to Grade 8.

6. Customization Flexibility

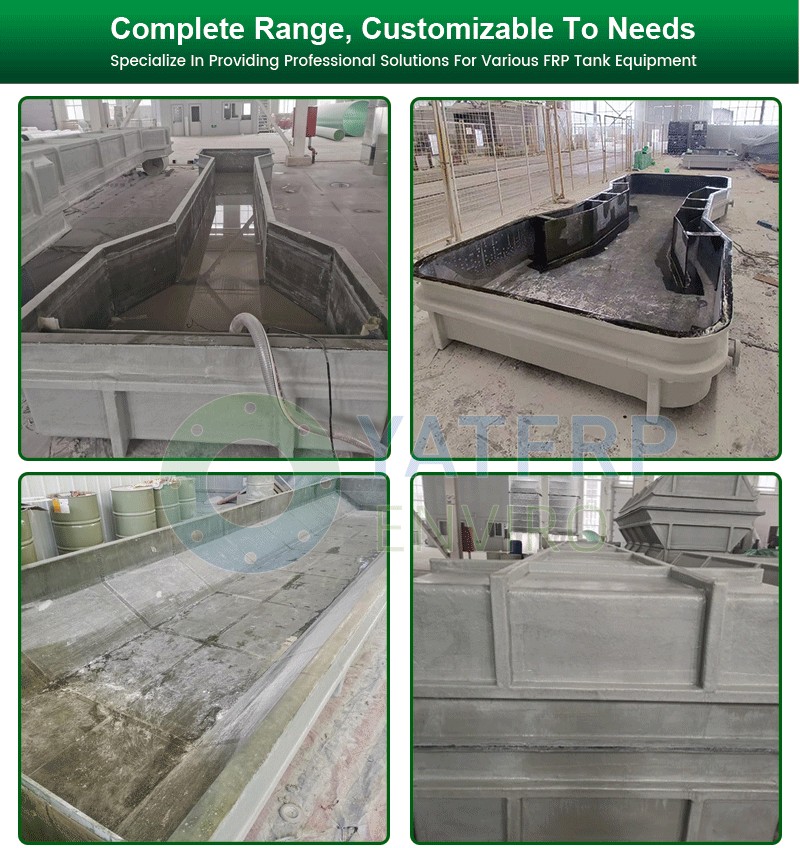

Dimension Customization: Length, width and height can be flexibly designed according to process requirements.

Functional Configuration: Accessories such as overflow ports, drain ports and heating pipe interfaces can be added as needed.

Resin Selection: Specialized resin systems (e.g., bisphenol A type, phenolic type) are available for different medium characteristics.

Stringent Production Control

1. Raw Material Inspection: 100% inspection of resin viscosity, solid content and gel time
2. Process Monitoring: Real-time monitoring of winding tension, lay-up angle and curing degree
3. In-process Inspection: Quality check at each working procedure and establishment of traceable records

Comprehensive Testing Procedures

1. Factory Acceptance Inspection: 100% water-filling test with 24-hour pressure maintaining and zero leakage
2. Performance Testing: Random sampling for mechanical property and chemical property testing
3. On-site Acceptance: Provision of installation guidance and assistance for customers to complete final acceptance

Professional Technical Support

1. Solution Design: Provision of optimal configuration solutions based on process requirements
2. Installation Guidance: Dispatching technical personnel for on-site installation and commissioning guidance
3. After-sales Maintenance: Provision of lifetime technical consultation and maintenance support

Electroplating Industry

Application Scenarios: Pre-plating pickling, activation, chemical polishing, electrolytic polishing
