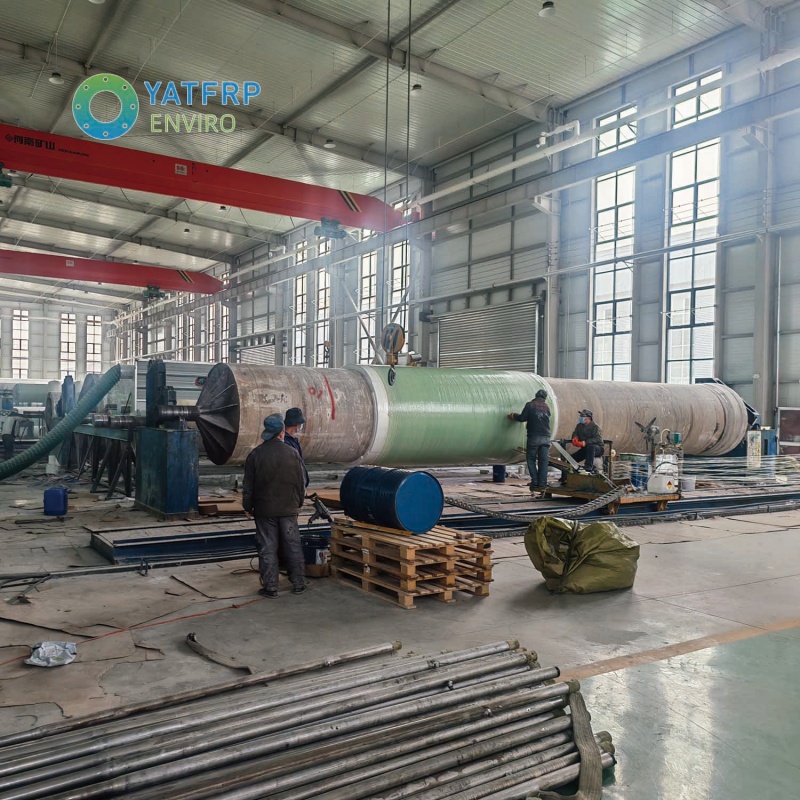

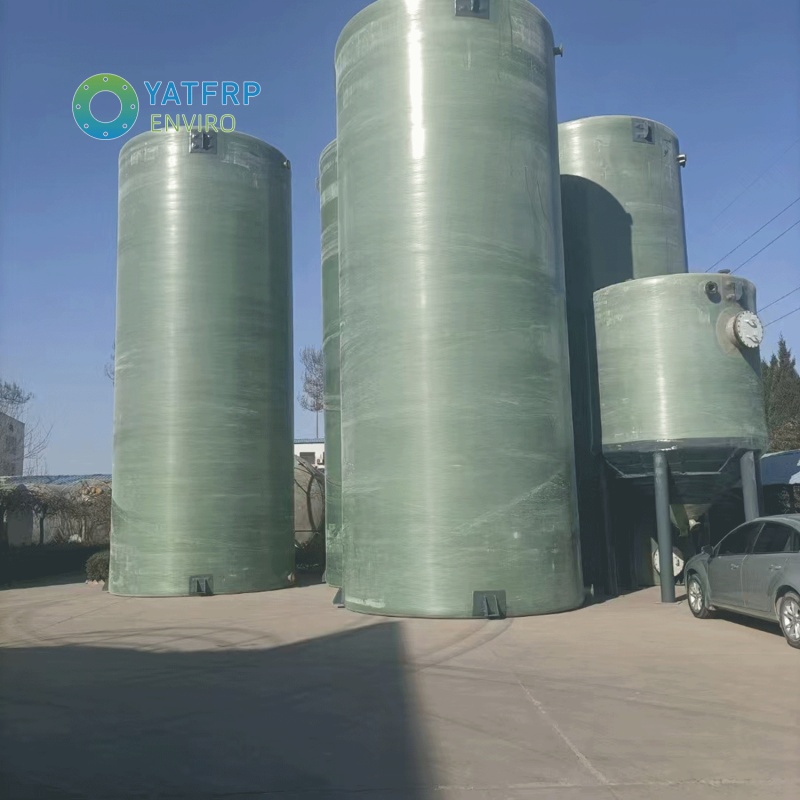

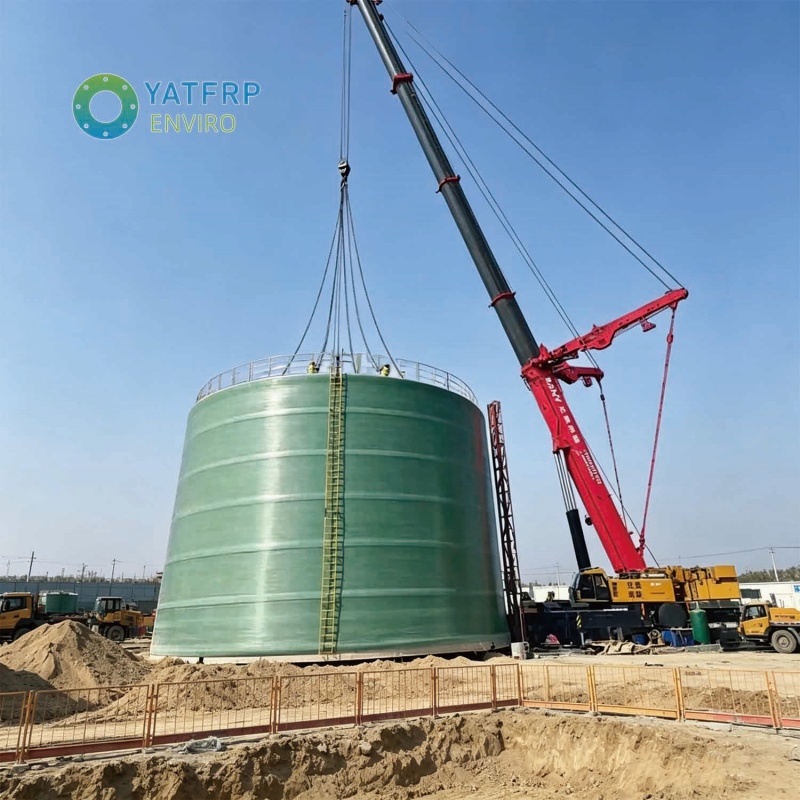

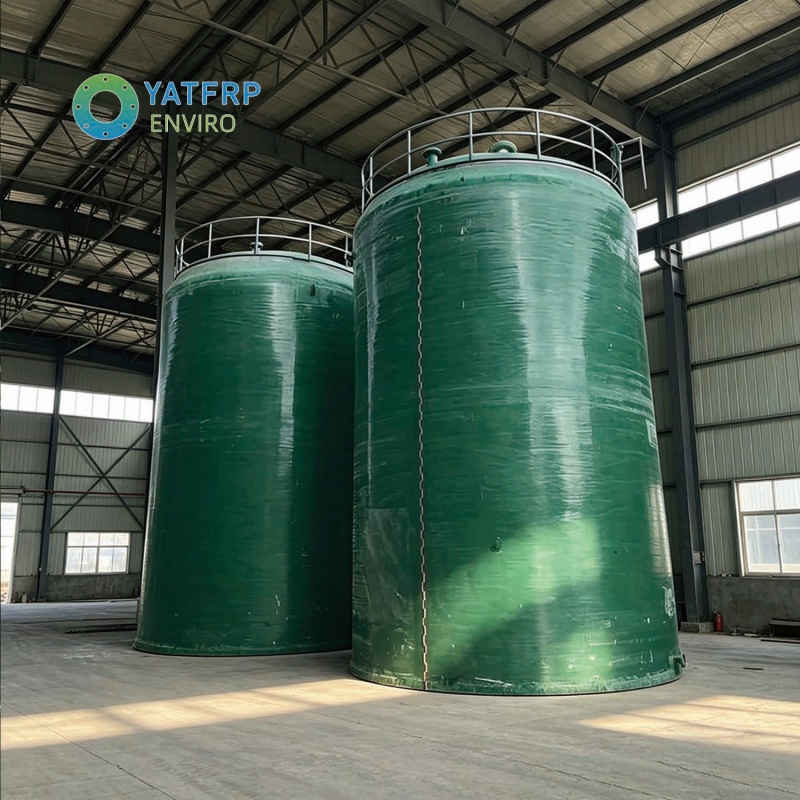

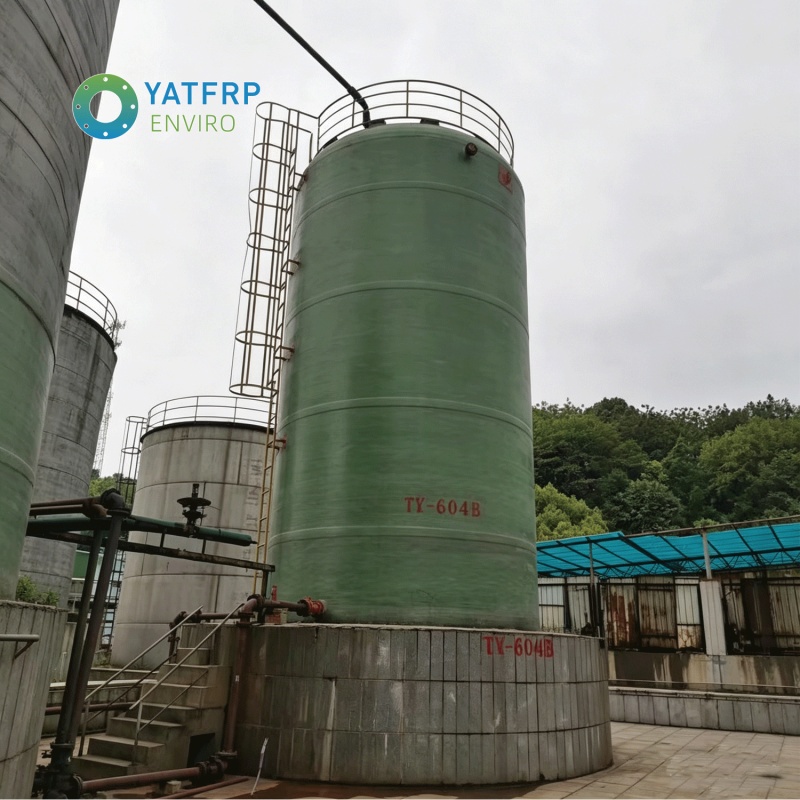

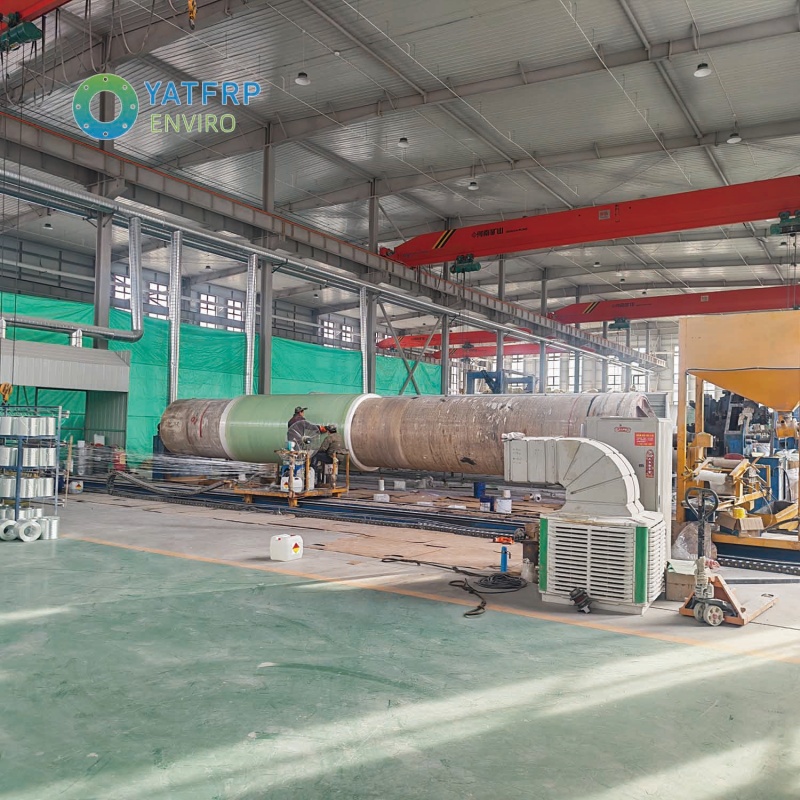

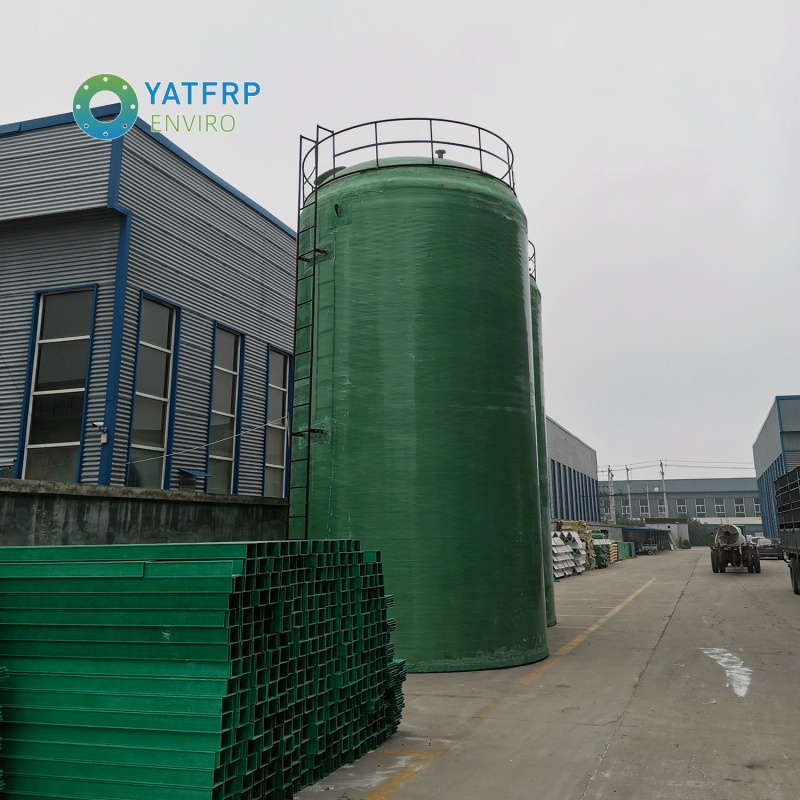

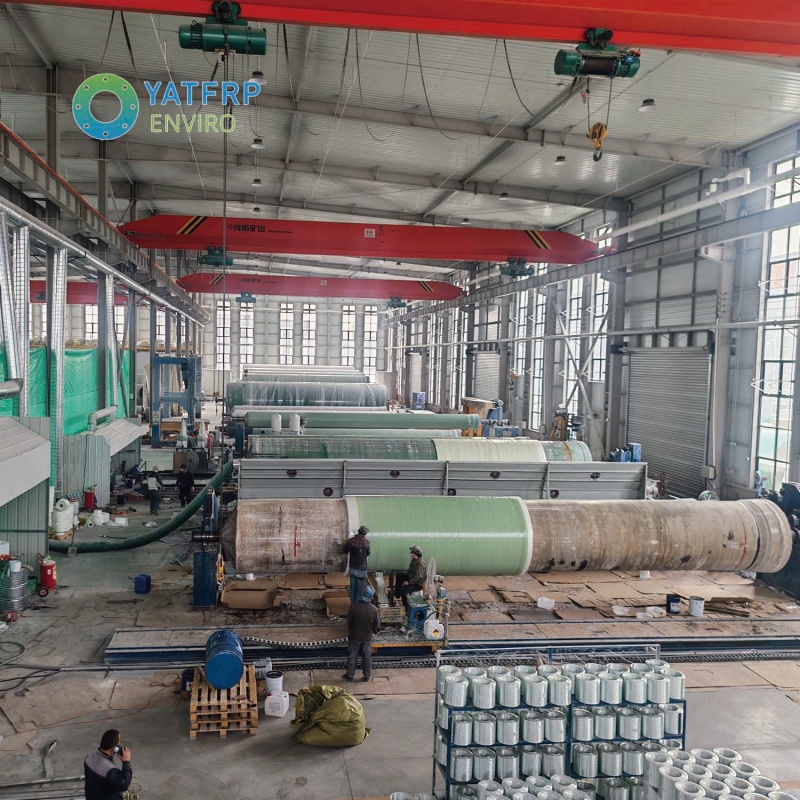

FRP Vertical Storage Tanks are high-performance composite containers manufactured by filament winding technology, using corrosion-resistant resins (unsaturated polyester, vinyl ester, epoxy) as the matrix and high-strength glass fiber as the reinforcement.

Designed for vertical installation, they are ideal for storing various liquids, chemicals, water, and corrosive media under atmospheric or low-pressure conditions.

Technical Specifications:

1. Material: Fiberglass + unsaturated polyester / vinyl ester / epoxy resin

2. Working Pressure: Atmospheric to 0.6MPa

3. Working Temperature: -40°C to 120°C (depends on resin)

4. Wall Structure:

Inner lining (corrosion barrier): 2.5–3.5mm

Structural layer (fiber-wound strength)

Outer anti-aging / UV layer: ~0.5mm

5. Hardness: Barcol ≥ 40

6. Standard Connections: Inlet, outlet, vent, drain, manhole

7. Standards: Compliant with AWWA D120, EN ISO 28765, NSF-61 (food/water)

Core Advantages:

1. Superior Corrosion Resistance (No Rust, No Leaks)

Custom resin systems resist acids, alkalis, salts, organic solvents, and harsh chemicals

No corrosion or rusting — eliminates metal tank replacement cycles

Seamless, non-welded construction for zero leakage risk

2. Lightweight & High Strength

Density only 1/4 of steel, but high specific strength

Reduces shipping cost by 40–60% vs. steel tanks

Easy transport & installation; no heavy lifting equipment needed

Lower foundation & installation costs

3. Long Service Life & Low Maintenance

Design life: 15–30+ years

Almost maintenance-free — no painting or anti-corrosion treatment

4. Space-Saving Vertical Design

Small footprint — ideal for limited plant space

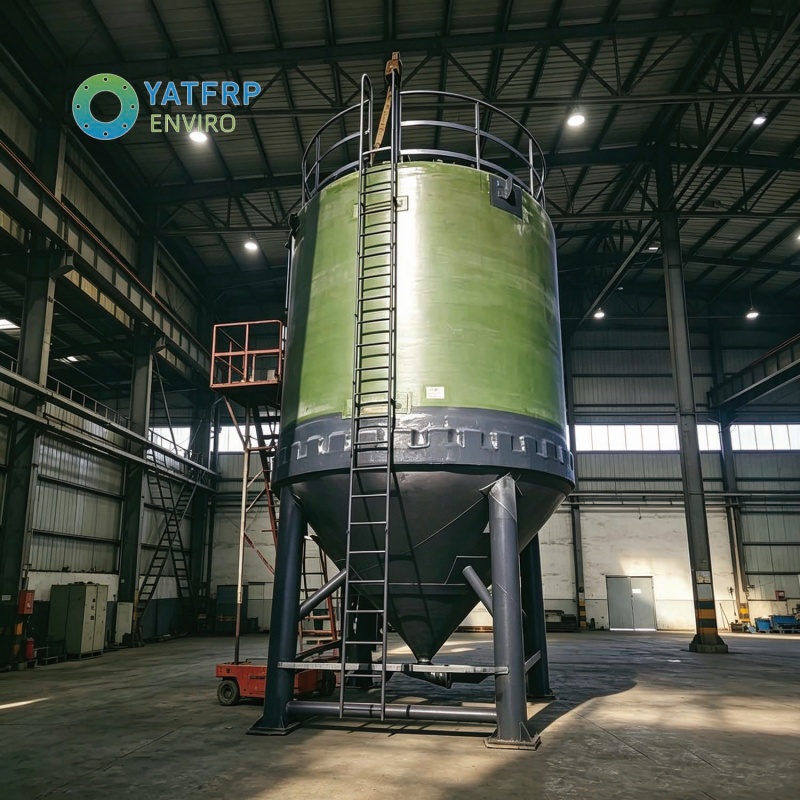

Gravity discharge for complete drainage (cone-bottom option)

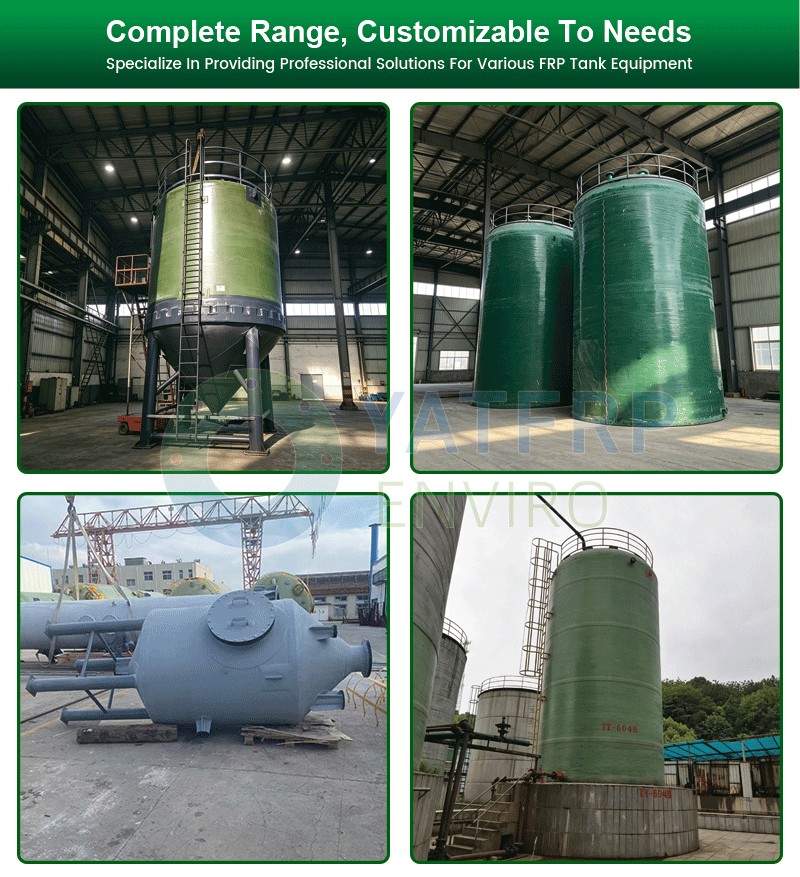

5. Fully Customizable

Volumes: 1m³ to 2000m³+ (custom sizes)

Diameters: 500mm–6000mm; Heights: 1000mm–15000mm

Flat bottom / cone bottom / open top / closed top

Custom manholes, nozzles, level gauges, ladders, platforms

Food-grade, anti-static, fire-retardant options available

Typical Applications:

1. Chemical Industry: Acids, alkalis, salts, solvents, intermediates

2. Water & Wastewater: Effluent, sewage, chemicals, pH adjusters

3. Food & Beverage: Food-grade water, syrups, edible oils (NSF certified)

4. Pharmaceuticals: Purified water, intermediates, clean-process solutions

5. Electroplating & Metal Finishing: Plating baths, etchants, waste liquids

6. Municipal & Environmental: Water storage, fire water, rainwater harvesting

7. Petrochemical & Energy: Process water, additives, non-conductive storage

A 30-year benchmark manufacturer of FRP environmental equipment, integrating R&D, production, sales and service, YAT FRP delivers green, efficient pollution control solutions to global clients across diverse industries.

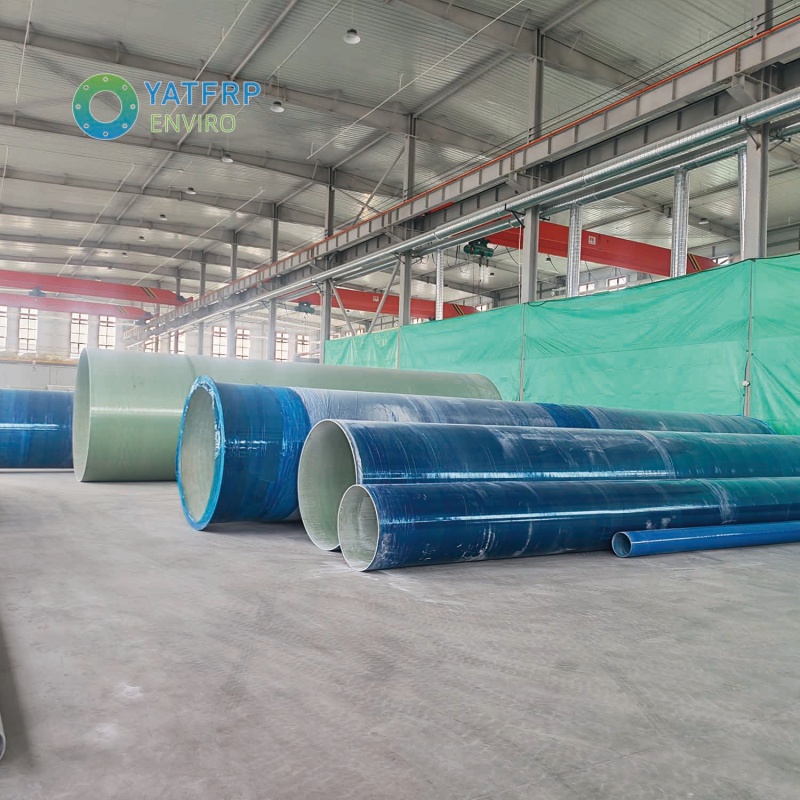

We offer a full range of FRP products and services, including storage tanks, pipes, desulfurization/purification towers, integrated pumping stations and anti-corrosion projects, ideal for chemical, energy, municipal, pharmaceutical and power sectors. Our FRP products feature light weight, high strength, corrosion resistance and long service life, replacing traditional metal equipment to cut long-term O&M costs significantly.

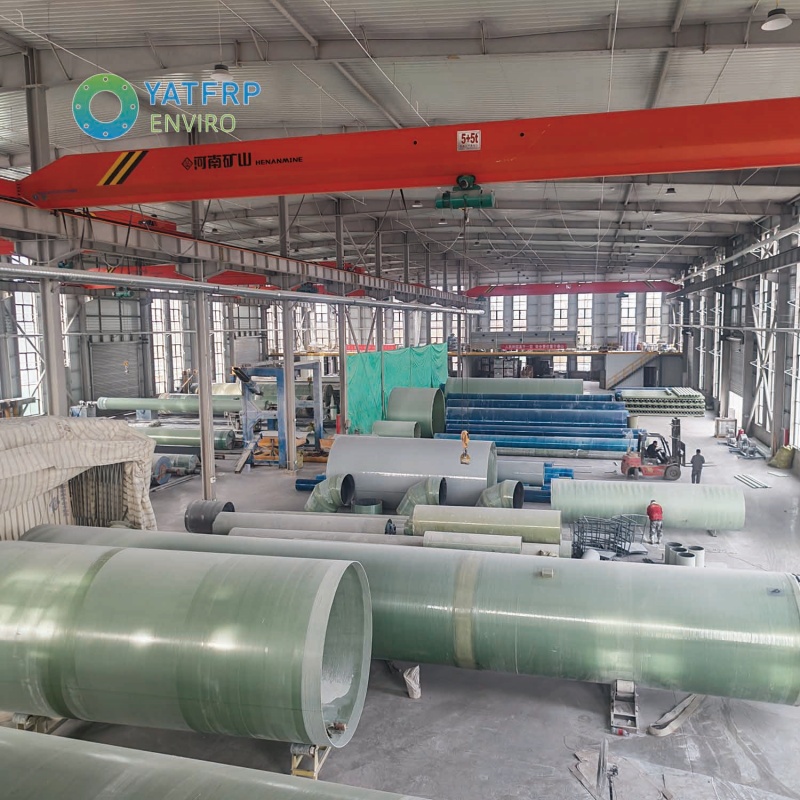

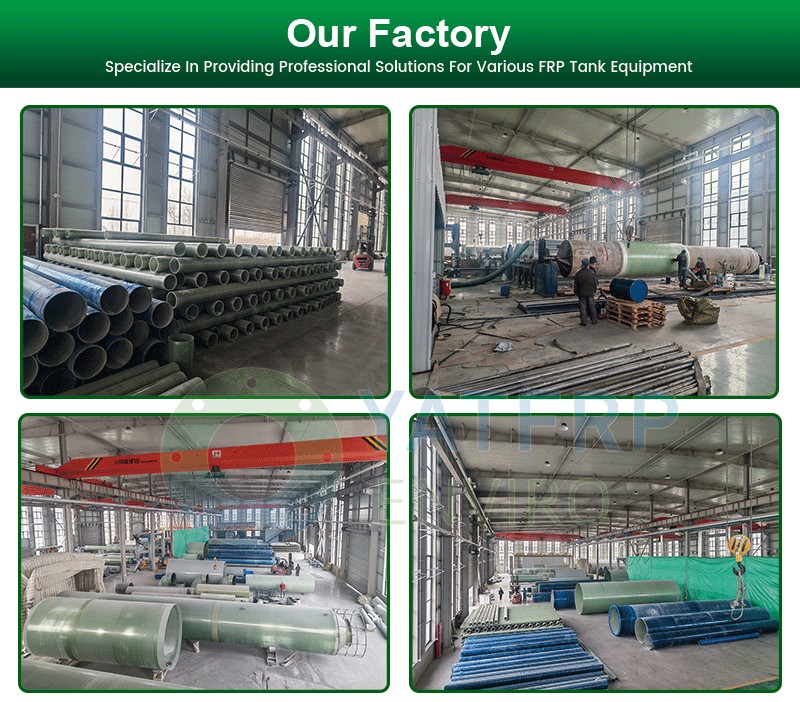

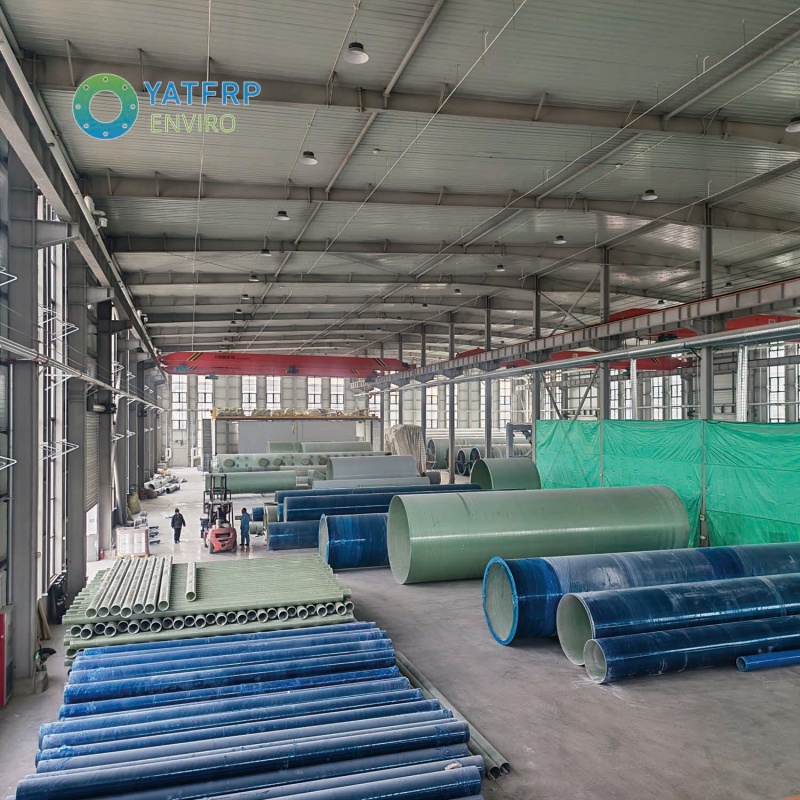

Housed in a 10,000+ ㎡ modern production base with advanced molding and testing facilities, we implement 20+ strict quality checks to ensure product stability and reliability. With proven expertise, we have partnered with Fortune Global 500 companies, SOEs and listed firms, boasting nationwide project cases to support global market expansion.

Guided by the philosophy of "Integrity-Based, Quality-First, Service-Oriented", we provide end-to-end services from design to after-sales support. Committed to technological innovation, we strive to partner with global counterparts to drive the green transformation of industries.
