Filament Wound FRP Tank

Filament wound FRP Tanks have emerged as leaders in the industrial storage field, thanks to the numerous advantages brought by the on-site filament winding process—including precise adaptability, flexible controllability, suitability for complex working conditions, shortened construction periods, enhanced customer participation, and simplified post-operation maintenance. With superior performance and customized services, they provide reliable guarantees for enterprises' material storage needs.

Product Introduction

FAQ

The Filament wound frp tank is a fiberglass-reinforced plastic liquid storage vessel manufactured using the on-site filament winding process.

1. Definition and Principle

The FRP on-site filament wound tank uses glass fiber and its products as reinforcing materials and synthetic resin as the matrix. Through specialized winding equipment, glass fiber and resin are wound around a mold or basic structure on-site in a regular pattern, and the tank body is formed after curing and molding.

2. Structure and Composition

It mainly consists of a tank body, tank top, tank bottom, inlet/outlet pipes, and supports. The tank body is made of fiberglass-reinforced plastic and resin composite material, and the tank top and tank bottom are treated with specific processes to ensure the integrity and safety of the storage tank.

3. Process Characteristics

It adopts numerically controlled winding equipment, and the winding process is fully automatically controlled. By precisely controlling the winding angle, number of layers of glass fiber, and resin dosage, the tank body can achieve excellent structural strength and corrosion resistance, meeting the requirements of different working conditions.

Our Advantages:

1. Source Factory with Full Quality Control

As a professional FRP tank manufacturer, we operate a complete production line and a strict QC system. We control every process from raw materials to finished products to ensure the stability and reliability of each tank.

2. Professional Technical Team & Customization Support

Our team of engineers has years of experience in FRP design and manufacturing. We offer OEM/ODM services and can customize solutions based on your specific medium, temperature, pressure, and installation environment.

3. Superior Corrosion Resistance & Long Service Life

Using high-quality resins and high-performance fibers, our products offer excellent corrosion resistance, weather resistance, and anti-aging properties. With a service life of over 15 years, they significantly reduce maintenance costs.

4. Strict Testing for Safety & Reliability

Every tank undergoes rigorous testing before delivery, including pressure testing, visual inspection, and dimensional checks. We ensure all products meet national standards and industry specifications for safe operation.

5. Competitive Pricing & On-Time Delivery

Our factory-direct sales model eliminates middlemen, offering you high-quality products at reasonable prices. With our large-scale production capacity, we guarantee on-time delivery for every order.

6. Comprehensive After-Sales Service

We provide full-range support including installation guidance, technical consultation, and maintenance services. Our responsive team ensures you have a worry-free experience.

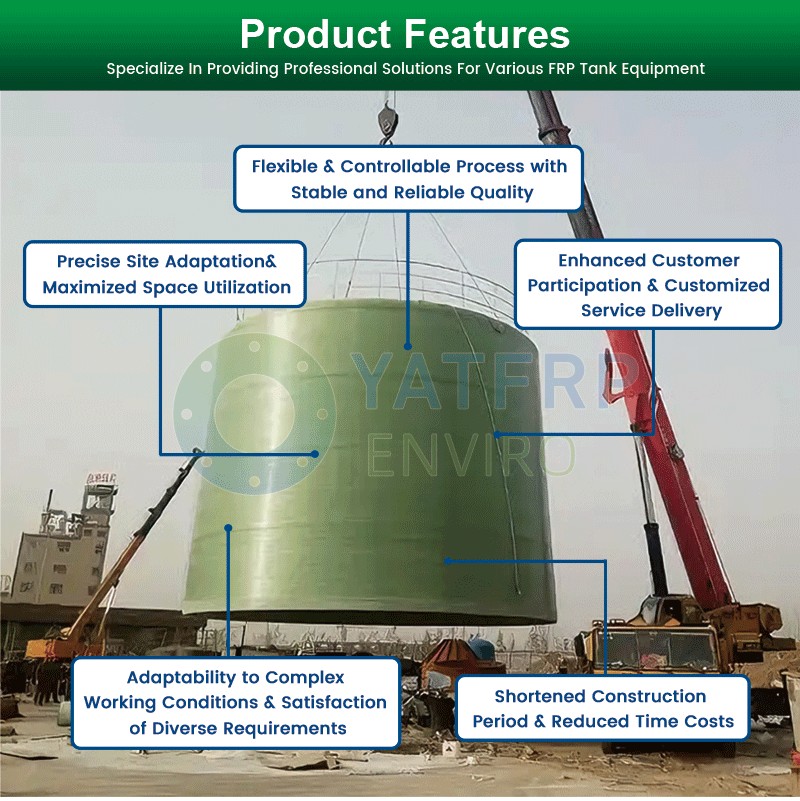

1. Precise Site Adaptation & High Space Utilization

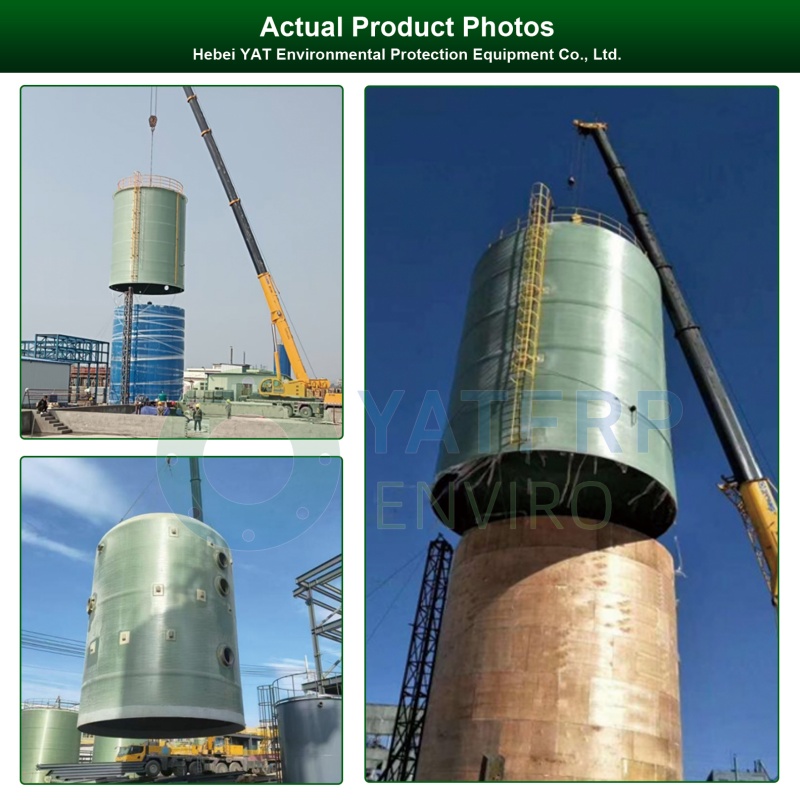

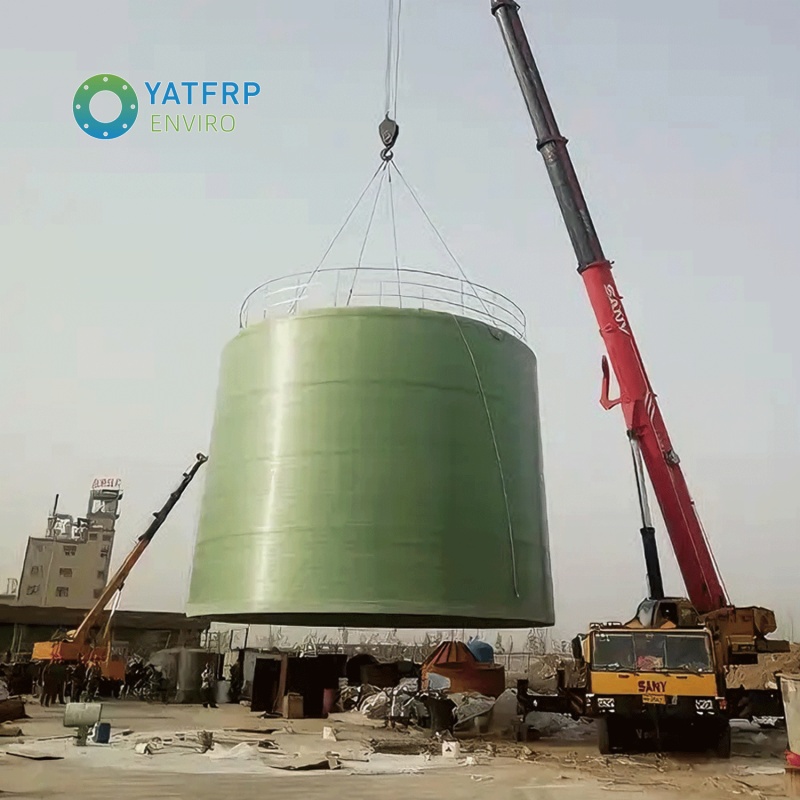

FRP on-site filament wound tanks are fabricated by on-site winding technology and customized to fit actual installation spaces. Our team provides on-site measurement and personalized design for regular or irregular sites, to make tank dimensions and structure fully adaptable to on-site conditions.

2. Flexible Process & Stable Reliable Quality

The on-site winding process features high flexibility. Technicians can adjust winding angle, fiber layers and resin dosage in real time per design demands and working conditions, to ensure overall structural strength. On-site production timely solves processing problems and guarantees winding quality. Meanwhile, it avoids transportation damage existing in factory prefabricated tanks, greatly improving product stability and durability.

3. Strong Working Condition Adaptability & Diversified Application

Suitable for multiple industries with different storage demands, on-site wound FRP tanks adapt well to complex working conditions. Targeted resins and fiberglass materials are selected for corrosive media to realize excellent anti-corrosion performance. The winding structure can also be optimized for high pressure and extreme temperature scenarios. It widely serves chemical, food, pharmaceutical, environmental protection and other fields.

4. Short Construction Cycle & Cost Saving

Different from factory production plus transportation and installation, integral on-site manufacturing greatly shortens construction time. Tank production can be synchronized with other construction works to reduce idle time, improve project efficiency, help customers put equipment into operation earlier and cut time costs.

5. Full Customization & Transparent Service

On-site production supports real-time progress and quality inspection for customers. We keep close communication to adjust design and structure as required, delivering one-stop customized solutions. It ensures the final tanks fully match actual usage needs and bring better practical value.

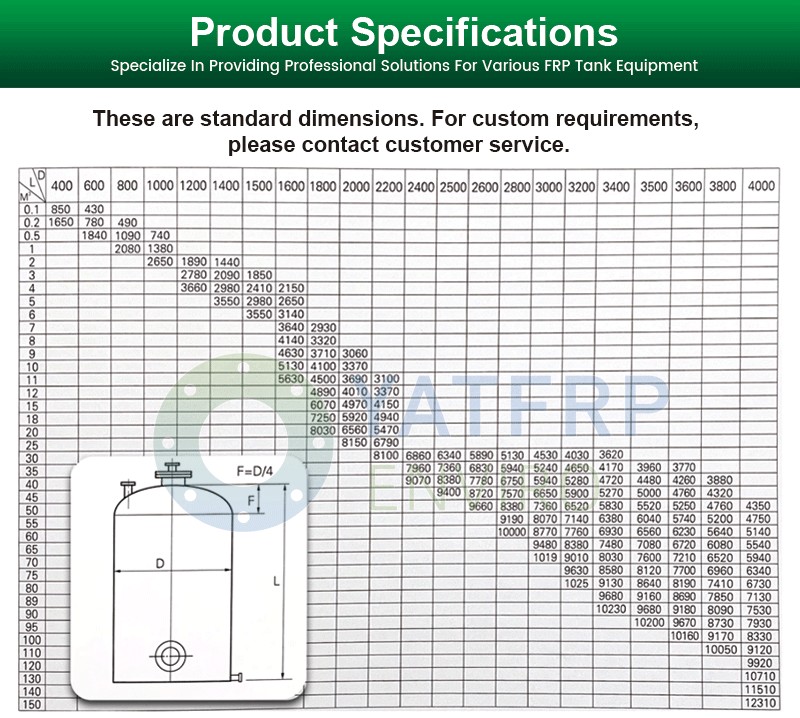

Parameter Table

m³/L/D	400	600	800	1000	1200	1400	1500	1600	1800	2000	2200	2400	2500	2600	2800	3000	3200	3400	3500	3600	3800	4000
0.1	850	430
0.2	1650	780	490
0.5		1840	1090	740
1			2080	1380
2				2650	1890	1440
3					2780	2090	1850
4					3660	2980	2410	2150
5						3550	2980	2650
6							3550	3140
7								3640	2930
8								4140	3320
9								4630	3710	3060
10								5130	4100	3370
11								5630	4500	3690	3100
12									4890	4010	3370
15									6070	4970	4150
18									7250	5920	4940
20									8030	6560	5470
25										8150	6790
30											8100	6860	6340	5890	5130	4530	4030	3620
35												7960	7360	6830	5940	5240	4650	4170	3960	3770
40												9070	8380	7780	6750	5940	5280	4720	4480	4260	3880
45													9400	8720	7570	6650	5900	5270	5000	4760	4320
50														9660	8380	7360	6520	5830	5520	5250	4760	4350
55															9190	8070	7140	6380	6040	5740	5200	4750
60															10000	8770	7760	6930	6560	6230	5640	5140
65																9480	8380	7480	7080	6720	6080	5540
70																1019	9010	8030	7600	7210	6520	5940
75																	9630	8580	8120	7700	6960	6340
80																	1025	9130	8640	8190	7410	6730
89																		9680	9160	8690	7850	7130
90																		10230	9680	9180	8090	7530
95																			10200	9670	8730	7930
100																				10160	9170	8330
110																					10050	9120
120																						9920
130																						10710
140																						11510
150																						12310

Filament wound frp tanks are widely used in industries such as new energy, metallurgy, pesticides & fertilizers, and sewage treatment. In new energy storage projects, they can be used to store chemical substances for all-vanadium redox flow batteries, iron-chromium flow batteries, etc.; in hydrometallurgy within the metallurgical industry, they are utilized for storing and processing various chemical substances involved in the metal extraction process; in the sewage treatment industry, they can function as sewage equalization tanks, chemical dosing tanks, and more.
