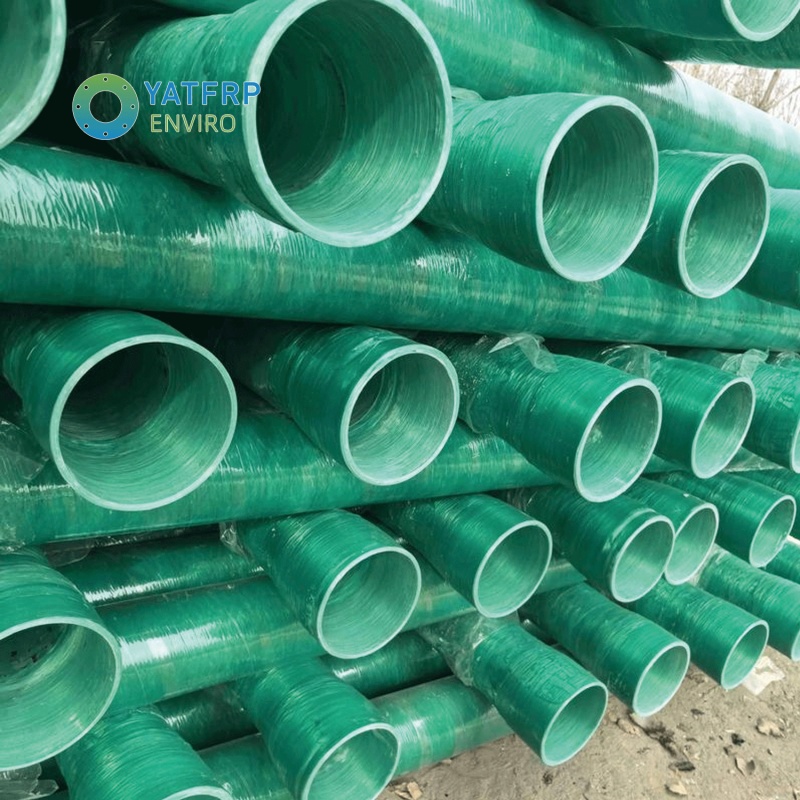

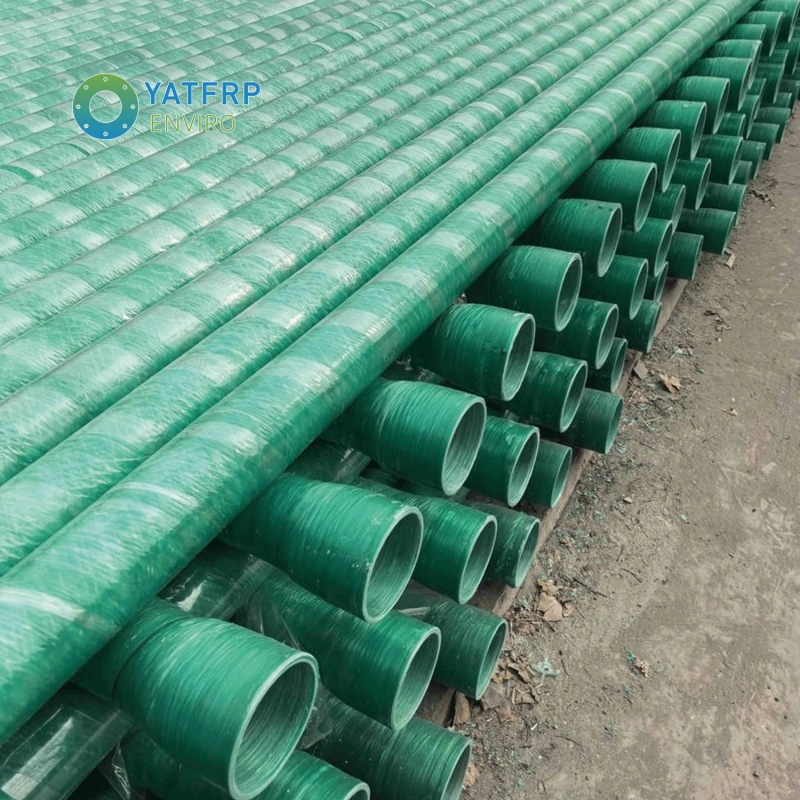

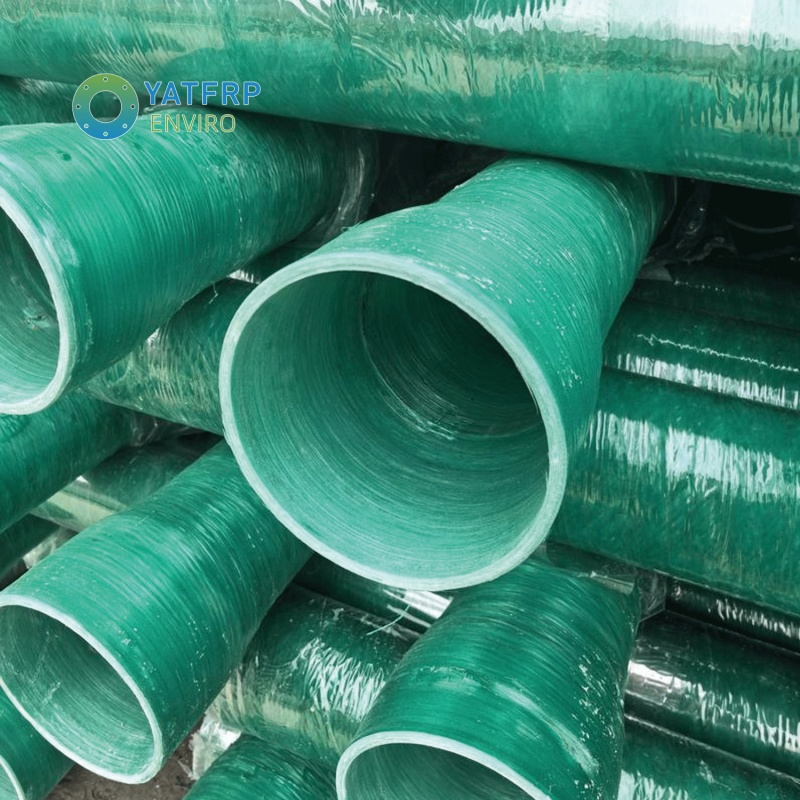

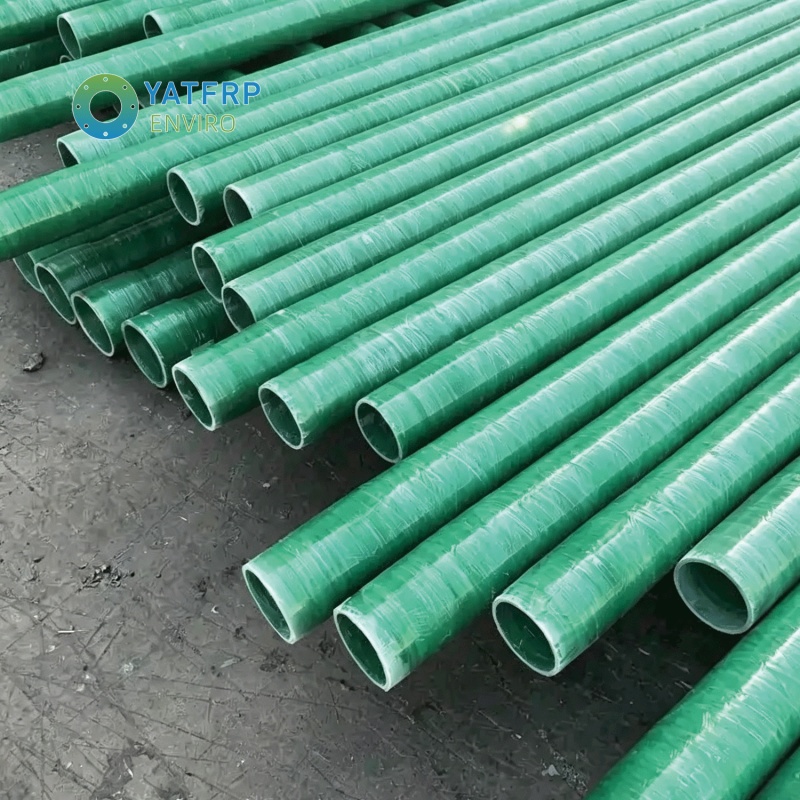

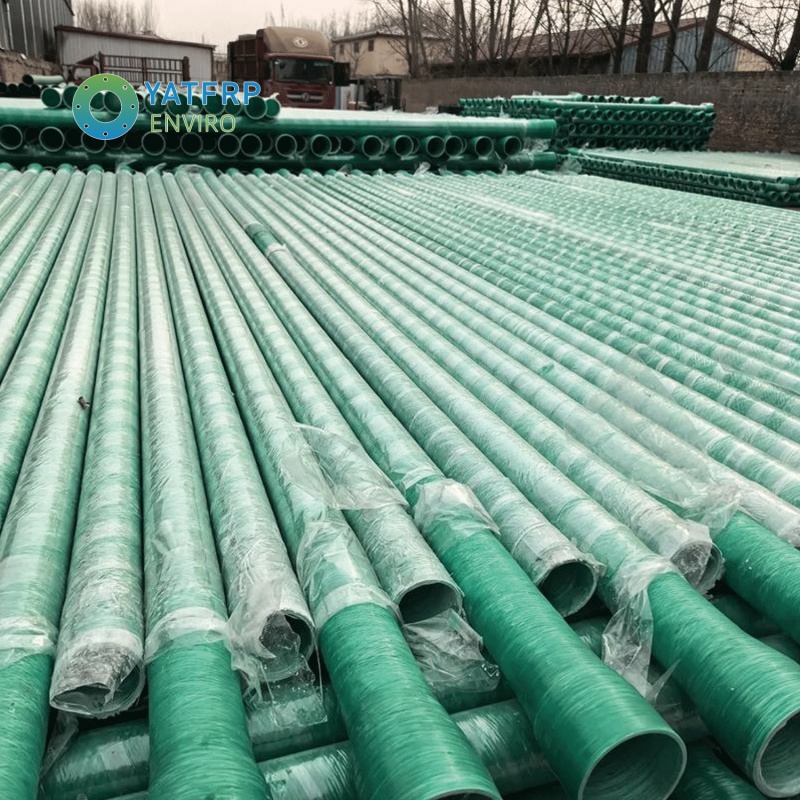

FRP Cable Protection Pipe

As a professional manufacturer, we produce FRP Cable Protection Pipe for power and communication cables. Our product features high strength, light weight, smooth inner wall, non-magnetic and corrosion-resistant properties, avoiding electric corrosion and eddy current. It withstands up to 120℃ and offers over 50 years service life. Available in DB‑N, DB‑R, DB‑E types with diameters 100‑200mm and 4000mm length, customizable. Widely used in power, communication, transportation, airports and infrastructure projects.

Product Introduction

FAQ

FRP Cable Protection Pipe is a professional protective conduit for power and communication cables. Made of high-strength fiberglass reinforced plastic, it is widely used for cable laying under roads, rivers, bridges and other harsh environments. It provides safe, durable and long-term protection for cables with excellent overall performance.

Product Types & Specifications

Types: DB-N (general), DB-R (reinforced), DB-E (super powerful)

Nominal inner diameter: 100–200mm

Standard length: 4000mm

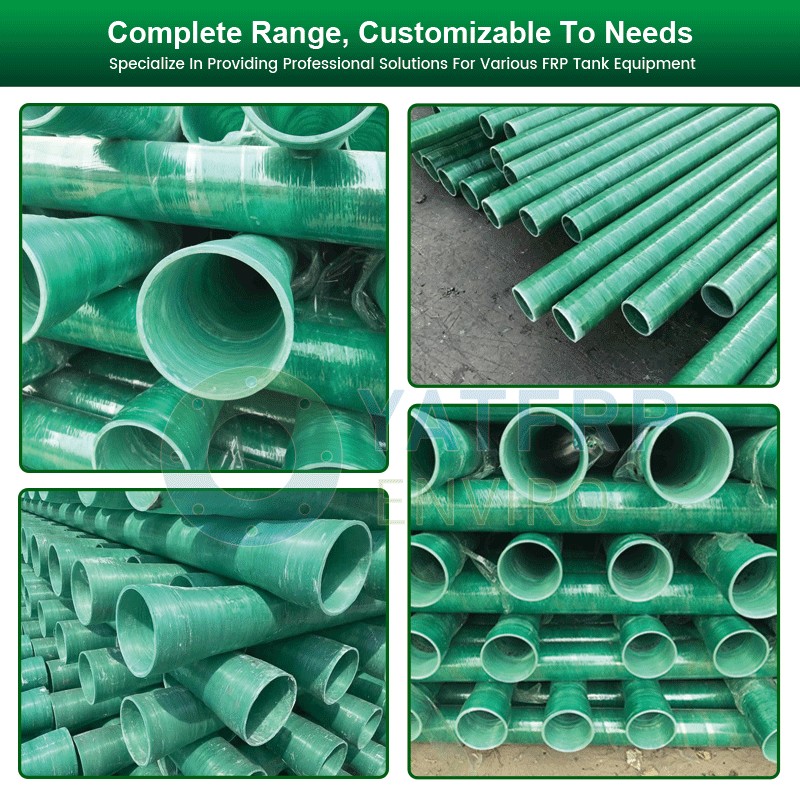

Special specifications can be customized

Product Features

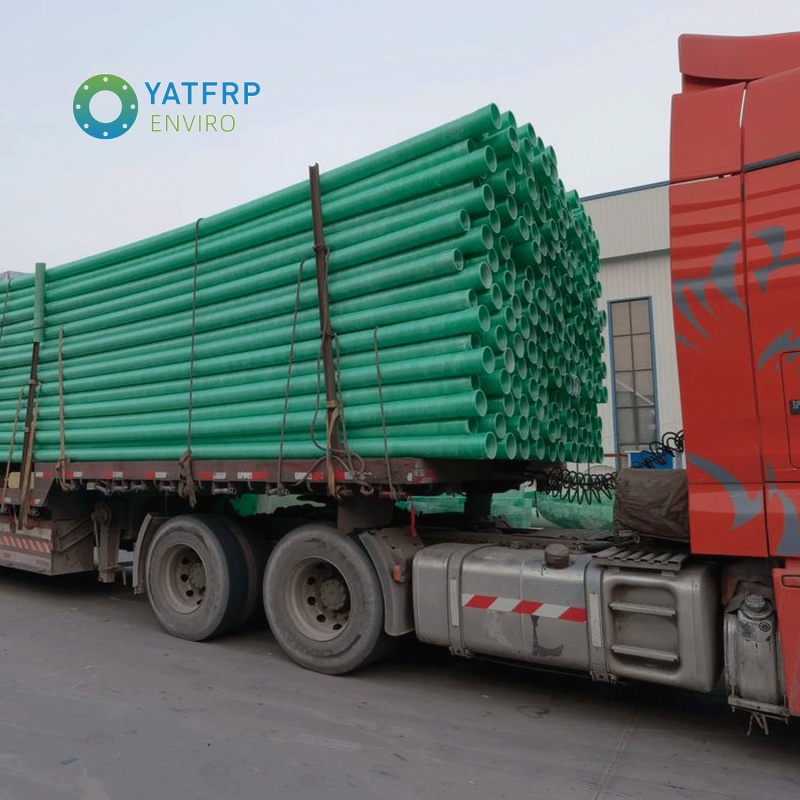

High strength, light weight (only 1/4 density of steel pipe), easy transportation and installation, no deformation.

Smooth inner wall with low friction, ensures smooth cable pulling without damage.

Non-magnetic, no electric corrosion and no eddy current, ideal for single-core cables.

Good chemical and seawater resistance, insulation, rust-free and maintenance-free.

Heat-resistant up to 120℃, service life more than 50 years.

Mechanical Properties

No.	ltem	Unit	Index
1	Bend strength	MPa	≥135
2	Tensile strength	MPa	≥120
3	Impact property	-	no cracks
4	Stiffness while the variety ratio is 10%	MPa	DB-N,DB-R,DB-E ≥1.2≥2.4≥5.0
5	Heat distortion temperature under bend load (Maximum bend positive stress is 1.81Mpa)	℃	≥130
6	Retention ratio of bend strength after soaked in water	%	≥80
7	Barcol hardness	-	≥35
8	Index of oxygen	%	≥26
9	Sliding friction coefficient	-	≥0.34
10	Heat resistance factor	℃•m/W	≥4.8

List of Size

Nominal inner diameter D	Nominal thickness t			Inner diameter of socket end D1			Depth of socket End S	Nominal Length L
Nominal inner diameter D	DB-N	DB-R	DB-E	DB-N	DB-R	DB-E	Depth of socket End S	Nominal Length L
100	3	5	8	116	120	126	80	4000
125	5	-	8	145	-	151	100	4000
150	5	8	10	170	176	180	100	4000
175	8	10	12	201	205	209	100	4000
200	8	10	14	226	230	238	120	4000

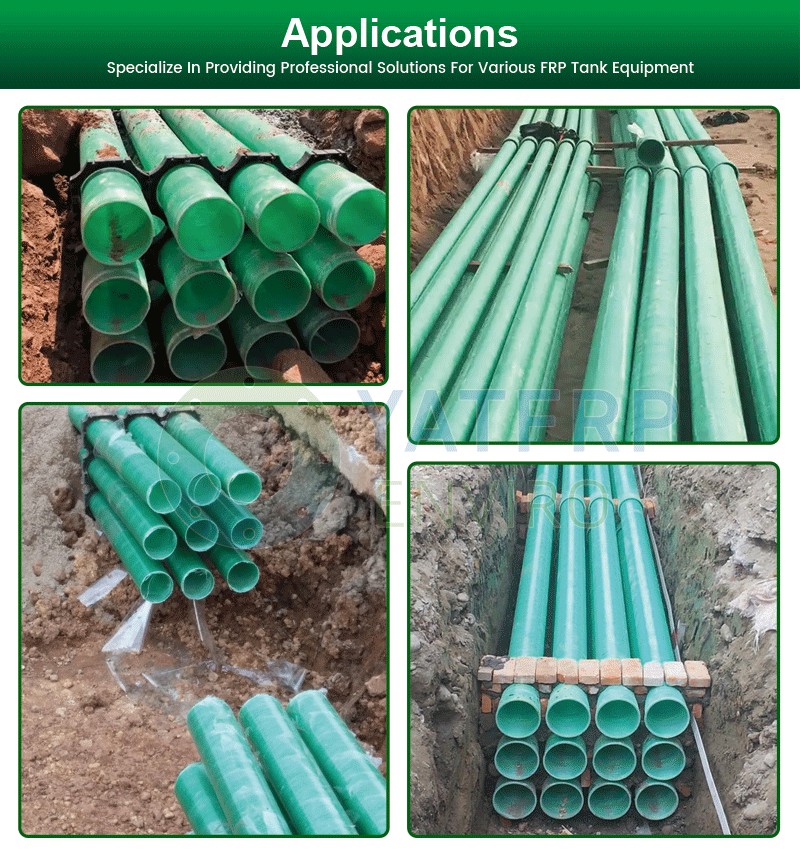

Widely used in electric power, communication, traffic, civil aviation airports and urban infrastructure, especially suitable for cable crossing construction.
