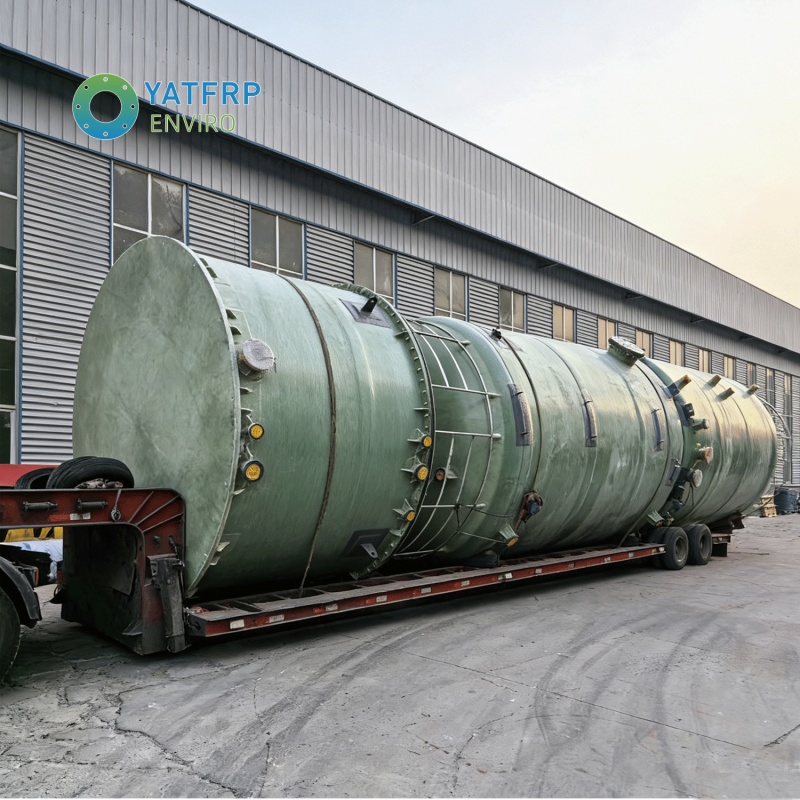

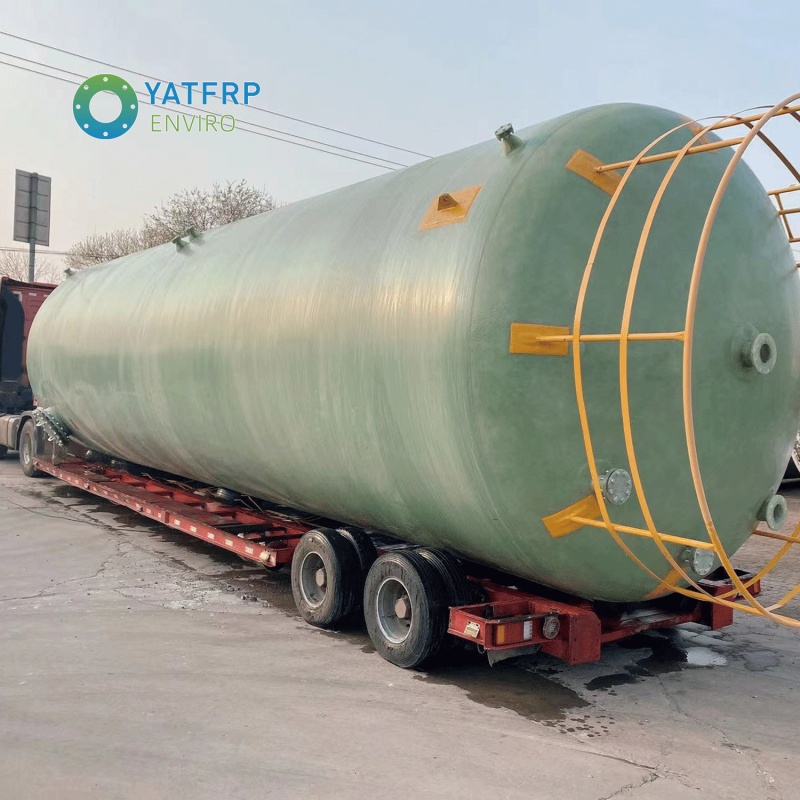

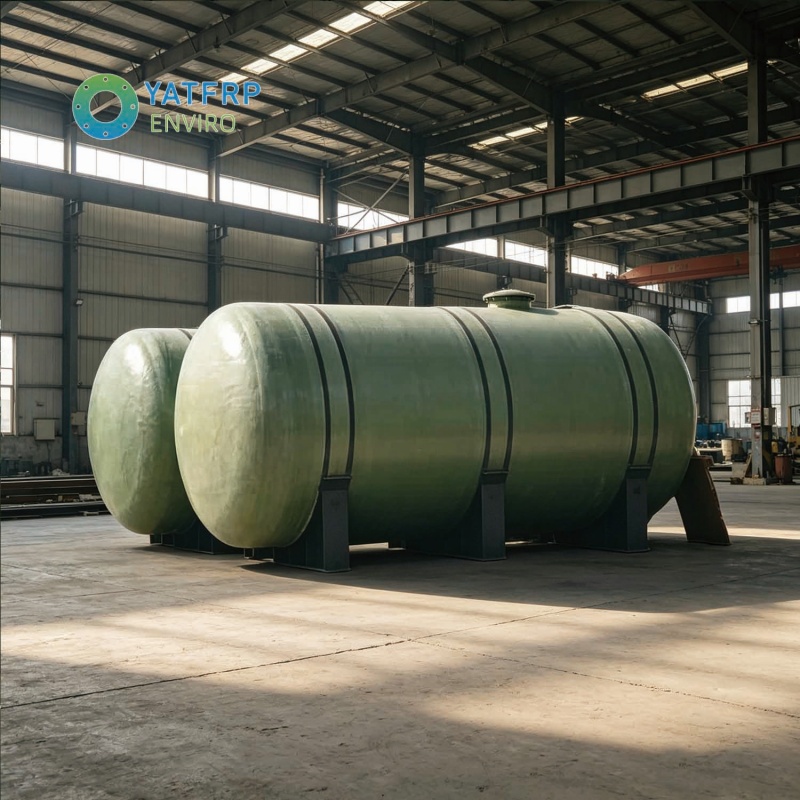

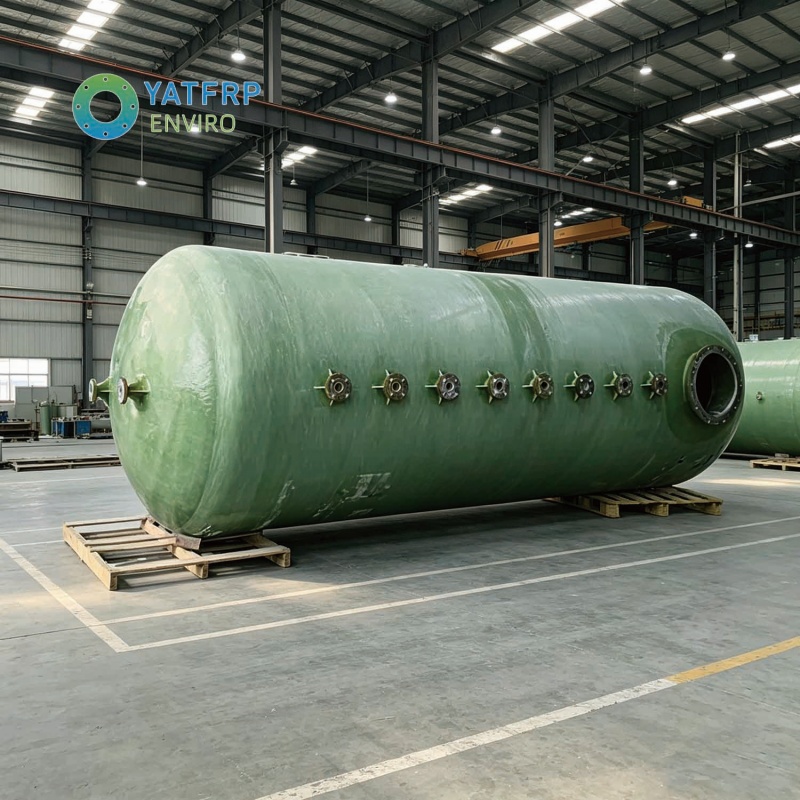

FRP Horizontal Tank

Our FRP Horizontal Storage Tank is manufactured by filament winding with fiberglass and corrosion-resistant resin. It features outstanding acid, alkali and chemical resistance, no rust, no leakage, light weight and high strength. Horizontal structure ensures stable placement, lower center of gravity and easy installation. Suitable for outdoor and underground use. Customizable volume, with supports, manholes and connectors. Widely applied in chemical, water treatment, petroleum, food and environmental industries. Factory direct supply with reliable quality and complete export documentation.

Product Introduction

FAQ

FRP Horizontal Storage Tanks are high-performance composite containers manufactured by filament winding technology, using corrosion-resistant resins (unsaturated polyester, vinyl ester, epoxy) as the matrix and high-strength glass fiber as reinforcement.

Adopting horizontal structure with supporting saddles, they are widely used for storing various liquids, chemicals, water and corrosive media under atmospheric or low-pressure conditions.

Technical Specifications:

Material: Fiberglass + polyester / vinyl ester / epoxy resin

Working Pressure: Atmospheric to 0.6MPa

Working Temperature: -40°C to 120°C

Structure: Corrosion lining, structural layer, anti-aging outer layer

Standard Accessories: Support saddles, manhole, inlet, outlet, vent, drain

Core Advantages:

1. Excellent Corrosion Resistance, No Rust & No Leakage

Custom resin system resists acids, alkalis, salts, organic solvents and harsh chemicals

No rust or corrosion, long service life

Integral seamless structure ensures zero leakage

2. Light Weight & High Strength

Weight only 1/4 of steel, easy to transport and install

Lower foundation and transportation cost

High strength, good rigidity, long-term deformation-free

3. Stable Horizontal Structure

Low center of gravity, good stability and seismic resistance

Equipped with standard support saddles, safe and firm

Convenient for pipeline connection and operation

4. Long Service Life & Low Maintenance

Service life up to 15–30 years

Almost maintenance-free, no painting required

UV-resistant surface suitable for outdoor and buried use

5. Fully Customizable

Volume: 1m³ to 1000m³

Flat head, elliptical head, open top optional

Custom manholes, inlets, outlets, level gauges, accessories

Food grade, anti-static, fire-retardant available

Horizontal Tank
volume(m³) height(mm) diameter(mm)	1000	Number of seats	1200	Number of seats	1400	Number of seats	1600	Number of seats	1800	Number of seats	2000	Number of seats	2200	Number of seats	2600	Number of seats	3000	Number of seats
1	1460	3
2	2370	3	1990	2	1550	2
3	4010	4	2870	2	2200	2
4			3760	3	2850	3	2280	2
5					3500	3	2770	2
6							3270	2
7							3770	3
8							4270	3	3460	2
9							4760	3	3860	3
10							5260	3	4250	3	3540	2
11							5760	4	4640	3	3850	2
12							6260	4	5040	3	4170	2	3540	2
15									6120	3	5130	3	4330	2
18									7390	3	6080	3	5120	3
20									8180	4	6720	3	5650	3	4220	2
25											8310	4	6960	3	5160	2	4100	2
30													8280	4	6100	3	4800	2
35															7050	3	5510	2
40															7990	3	6220	3
50															9870	4	7630	3
60																	9050	3
70																	10460	4
80																	11880	4
The other specifications can be designed per the requirement

Typical Applications:

1. Chemical industry: acids, alkalis, solvents, chemical intermediates

2. Water treatment: wastewater, process water, chemicals

3. Petroleum & petrochemical: oil, additives, non-conductive storage

4. Food & beverage: food-grade water, syrup, edible liquids

5. Electroplating, metallurgy, municipal & environmental protection
