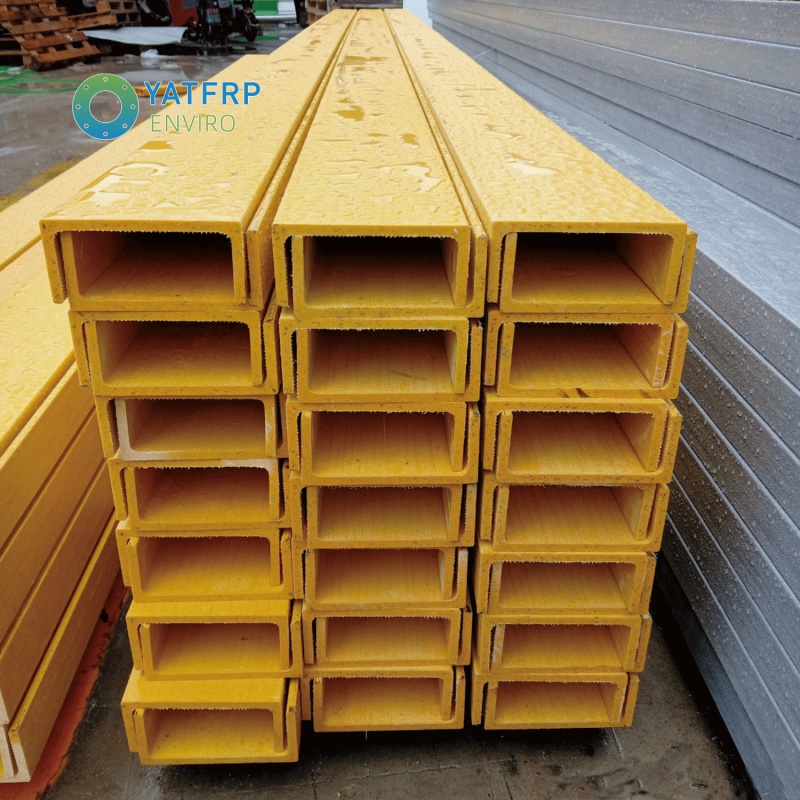

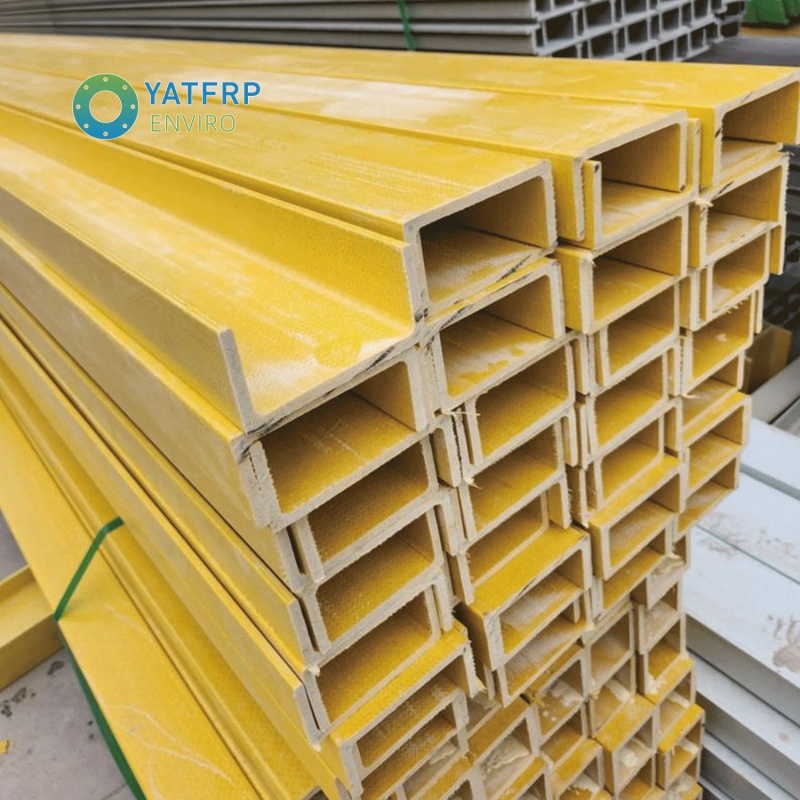

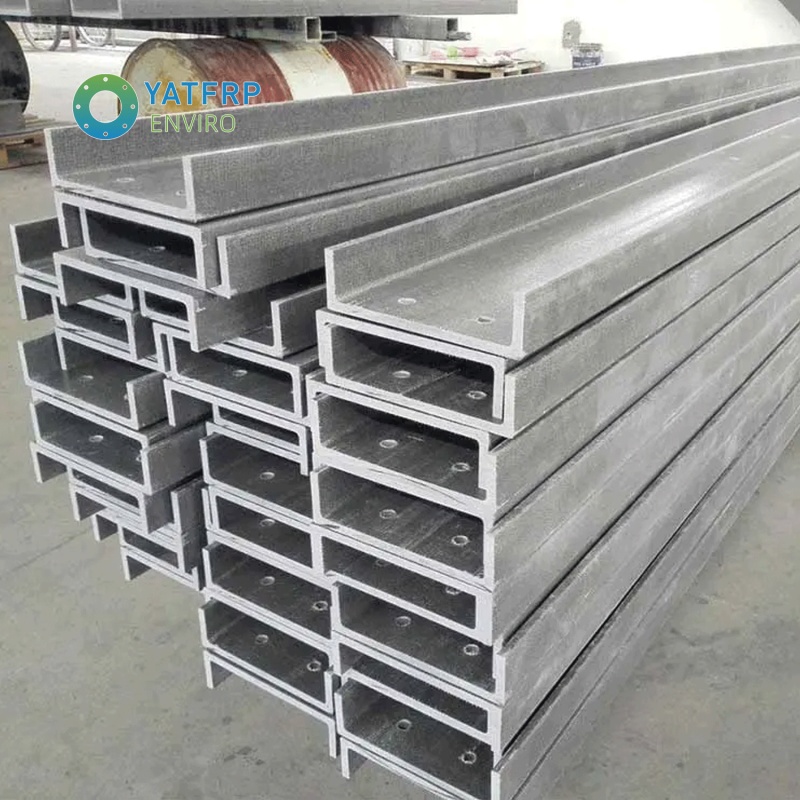

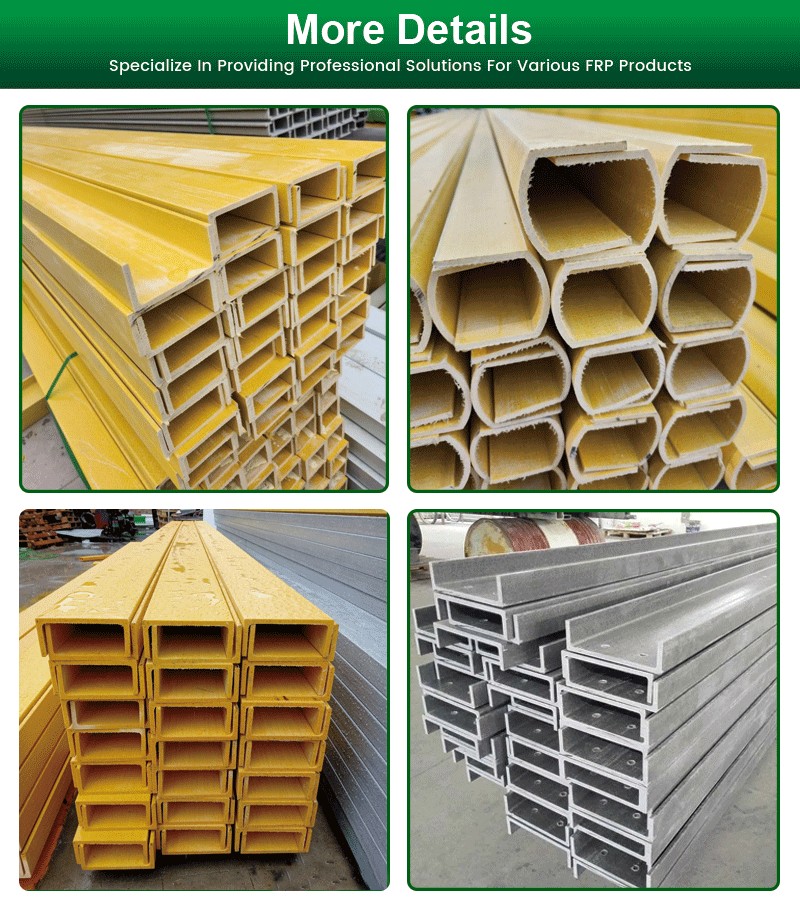

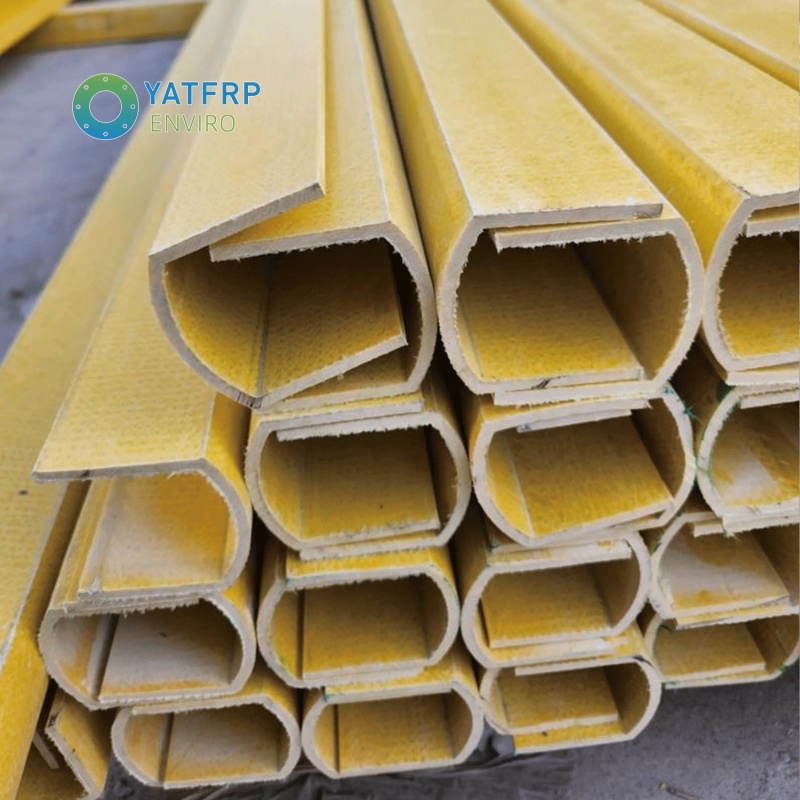

Pultruded FRP channel (also called fiberglass U/C channel, composite channel steel) is a U-shaped structural composite made via continuous pultrusion technology. Continuous E-glass rovings and surface veil are fully soaked in thermosetting resin, then pulled through dedicated U-shaped heating molds for one-piece curing, forming an open three-sided C cross-section with flat base and two vertical flanges.
Different from closed tubular profiles and solid I-beams, its open groove design is convenient for wiring, cable laying and bracket installation. It serves as ideal replacement for carbon steel channel, aluminum channel and wood beams. All items pass ISO9001 and EN13706 standards. Standard sizes are stocked, and base width, flange height, thickness, resin and color are fully customizable.
Complete Technical Specifications:
1. Dimension Range
Base width: 30mm – 200mm
Flange height: 20mm – 100mm
Wall thickness: 3mm – 10mm
Standard single length: 6m; arbitrary custom cutting length supported
Inch-size channels available for North American market
2. Optional Resin Matrix
General Polyester: Cost-effective for regular construction frames, cable trays
Vinyl Ester: Super anti-corrosion grade for marine, chemical and sewage projects
Epoxy: Higher mechanical strength for high-standard power insulation structures

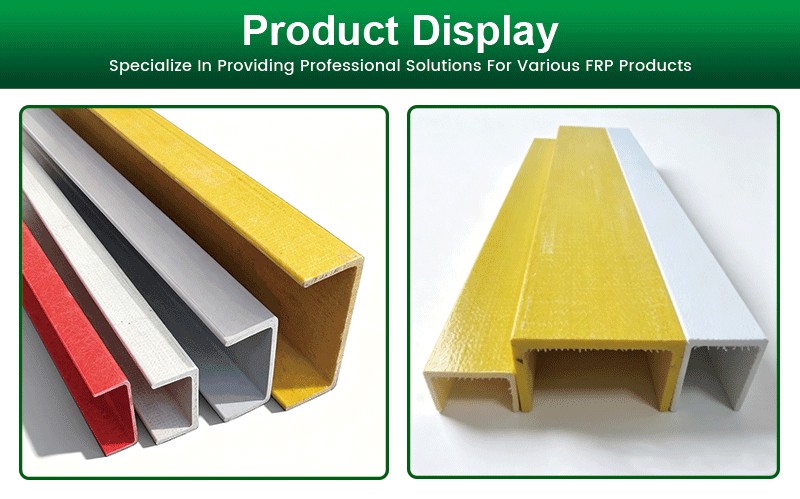

3. Standard Color Choices
Safety yellow, white, light grey, dark grey, green, red; custom color matching supported
4. Mechanical Reference Data
Density: 1.8–2.0 g/cm³ | Tensile Strength ≥350MPa | Flexural Strength ≥450MPa
Certifications: ISO9001, EN13706, UL94 flame retardant certificate optional
Core Competitive Advantages:
1. Open U-Shape Design, Flexible Installation & Wiring
The open groove structure reserves inner space for cables, pipelines and slide rails, widely used as cable tray side rails, equipment slide supports and frame base rails. Only 1/4 density of steel, light enough for manual handling without heavy lifting gear, cutting shipping and labor costs.
2. Complete Anti-Corrosion & UV Anti-Aging
Zero rust, rot or oxidation. Resist salt spray, acids, alkalis and various industrial solvents. Outer gel-coat veil blocks ultraviolet damage, no fading or cracking under long outdoor exposure, perfect for coastal, chemical, wastewater and aquaculture facilities.
3. 100% Electrical & Thermal Insulation
Non-conductive and non-magnetic, eliminates electric leakage and arc hazards. Low thermal conductivity avoids heat transfer, the preferred structural material for substation cable supports and electrical equipment frames.
4. Maintenance-Free Long Service Life
Integral pigmented resin body requires no painting, galvanizing or anti-rust coating. Stable mechanical performance over 20 years outdoors, greatly reducing later project maintenance expenditure.
5. Easy Machining & Rich Custom Options
Can be cut, drilled, slotted and bolted with standard carbide tools without welding. Multiple sizes, wall thicknesses, solid colors and flame-retardant resin grades available on demand, compatible with FRP angles and tubes for full frame assembly.
6. Optional UL94 Flame Retardant Grade
Vinyl ester fire-resistant channel meets UL94 V-0 standard, low smoke and non-dripping while burning, complying with fire codes for factories, power plants and public buildings.

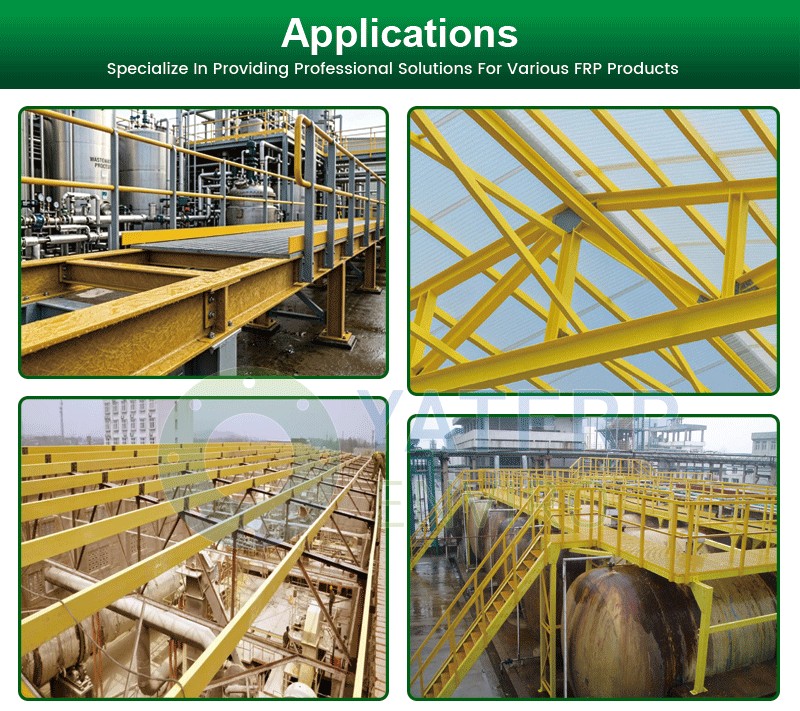

Wide Application Scenarios:
1. Power & Electrical Industry: Cable tray side beams, cable ladder supports, insulation equipment brackets
2. Chemical & Wastewater Treatment: Equipment slide rails, platform support bases, tank fixing channels
3. Marine & Coastal Engineering: Offshore walkway side rails, seaside facility support frames, dock guard base beams
4. Construction & Public Facilities: Billboard stand bottom rails, stair side supports, workshop partition frames
5. Agriculture & Horticulture: Greenhouse bottom support channels, livestock farm fence base rails
6. Industrial Workshop: Machine equipment slide tracks, safety barrier bottom supports, pipeline fixing brackets
Why Choose Us?
1. Factory direct supply with multiple full-automatic pultrusion lines, stable fast delivery for bulk wholesale orders
2. Mass stock of mainstream channel sizes for immediate shipment; new molds for special customized U-profiles
3. Strict raw material inspection + finished tensile & bending testing; official test reports and technical datasheets provided
4. Professional engineering team offers free structural matching design, fully compatible with our FRP tubes, angles and I-beams
5. Waterproof pallet packaging wrapped with plastic film, preventing scratches and collision deformation during sea & land transportation
6. Global OEM & ODM wholesale service, welcome long-term cooperation with distributors and large engineering contractors
