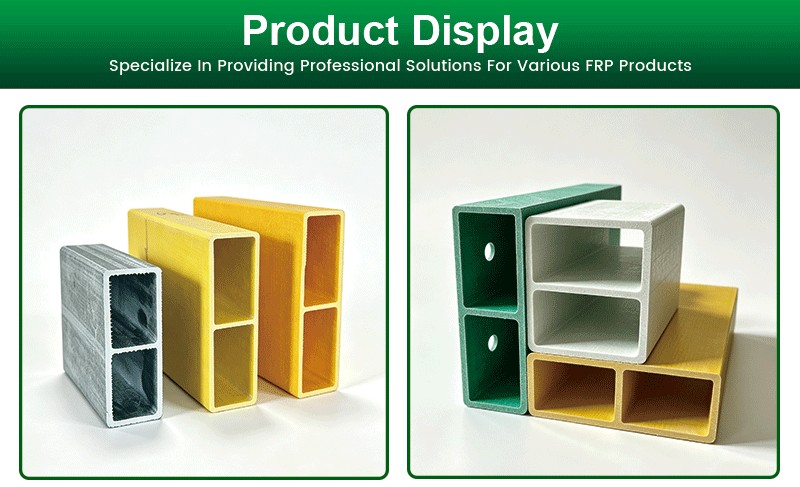

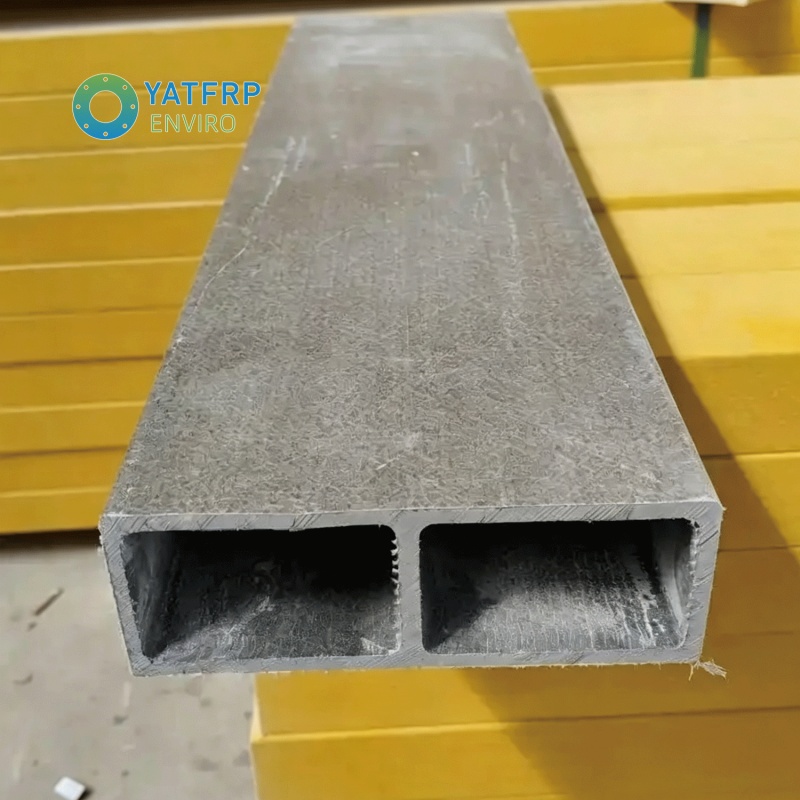

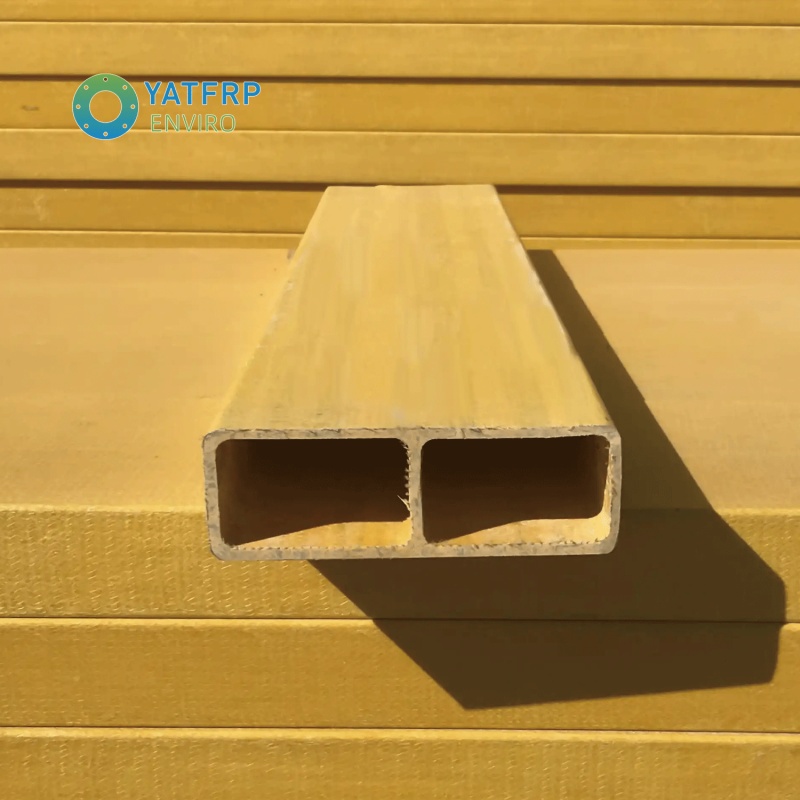

Pultruded FRP double cavity rectangular tube, also known as day-shaped FRP purlin, is a high-load dual-chamber composite profile made via one-step continuous pultrusion. Continuous E-glass rovings and anti-UV surface veil are fully saturated with thermosetting resin, extruded through special double-cell molds to form an integrated two-compartment rectangular cross-section with a middle reinforcing web.
Different from single rectangular tubes, the built-in middle partition greatly improves bending resistance, anti-buckling capacity and overall structural rigidity, making it the perfect replacement for traditional steel purlins in corrosive workshops. All products comply with ISO9001 and EN13706 standards. Standard sizes are in stock; outer dimension, wall thickness, resin formula and color are fully customizable.
Complete Technical Specifications:
1. Standard Dimension Range

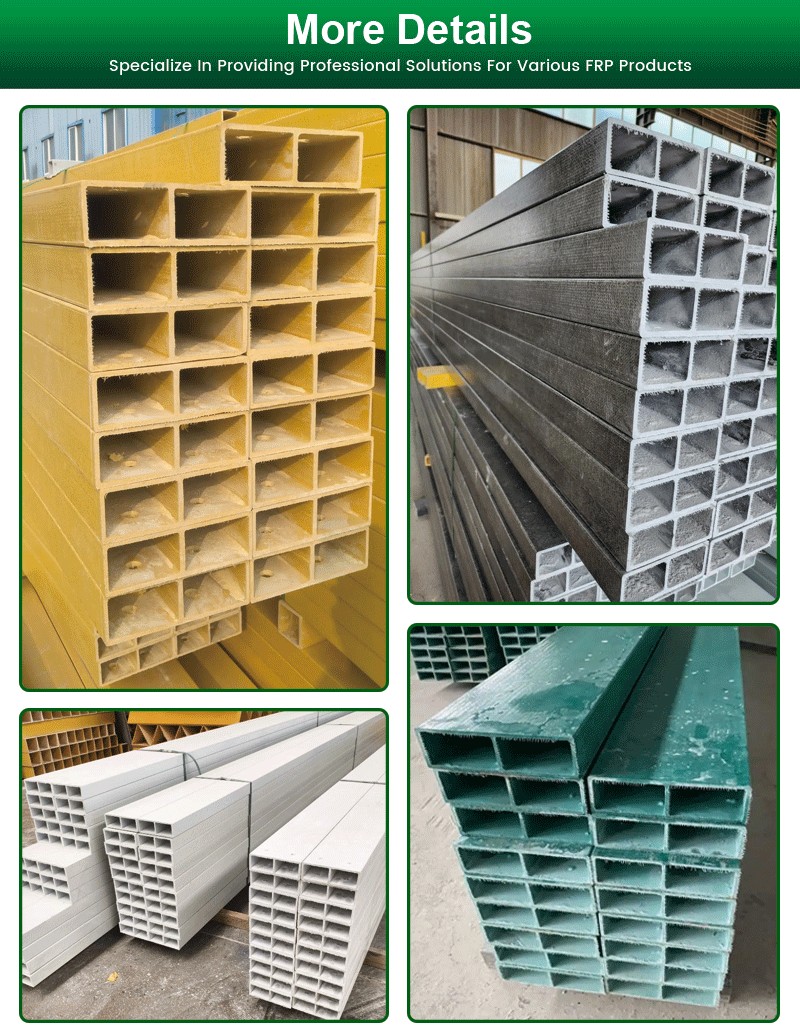

Common outer sizes: 120×80mm, 160×55mm, 180×100mm, 200×60mm, 220×60mm
Wall thickness: 4mm ~ 12mm
Standard single length: 6m; arbitrary custom cutting length supported
Inch-sized profiles available for North American customers
2. Optional Resin Matrix
General Polyester: Cost-effective for regular farm and factory roofs
Vinyl Ester: Super anti-corrosion grade for chemical, printing and wastewater plants
Epoxy: Higher mechanical strength for power station insulation roofing
3. Standard Color Choices
Safety yellow, white, light grey, dark grey, green, red; custom color matching supported
4. Mechanical Reference Data
Density: 1.8–2.0 g/cm³ | Tensile Strength ≥350MPa | Flexural Strength ≥500MPa
Certifications: ISO9001, EN13706, UL94 flame retardant certificate optional
Core Competitive Advantages:
1. Dual-Cavity Reinforced Structure, Superior Bending Performance
The middle support web disperses bending stress evenly, effectively avoiding deformation and collapse under long-span loads. It fits roof beams with spans up to 6–13 meters, far stronger than single rectangular tubes of the same weight. Its density is only 1/4 of steel, cutting transportation and installation labor costs without heavy lifting equipment.
2. Full Corrosion & Salt Spray Resistance
Zero rust, oxidation or rot. Resistant to acids, alkalis, chemical fumes, sewage and coastal salt mist. The outer gel-coat layer blocks UV aging, no fading or cracking under long-term outdoor exposure. Service life reaches over 20 years in chemical plants, farms and coastal buildings.
3. Complete Electrical & Thermal Insulation
Non-conductive and non-magnetic, no electric spark risks for power plants and chemical factories. Low thermal conductivity prevents heat transfer, suitable for high-temperature workshop roofing structures.
4. Maintenance-Free & Low Lifecycle Cost
Integral pigmented resin body requires no painting, galvanizing or regular anti-rust treatment. No frequent replacement needed like steel purlins, greatly reducing later building maintenance investment.
5. Easy Machining & Wide Customization
Can be cut, drilled and bolted with ordinary tools without welding. Multiple wall thicknesses, solid colors and flame-retardant resin grades available on demand. Matches FRP angles and tubes for full frame assembly.
6. Optional UL94 Flame Retardant Grade
Vinyl ester fire-resistant version generates low smoke and no molten drips, meeting fire safety standards for industrial factories and public facilities.

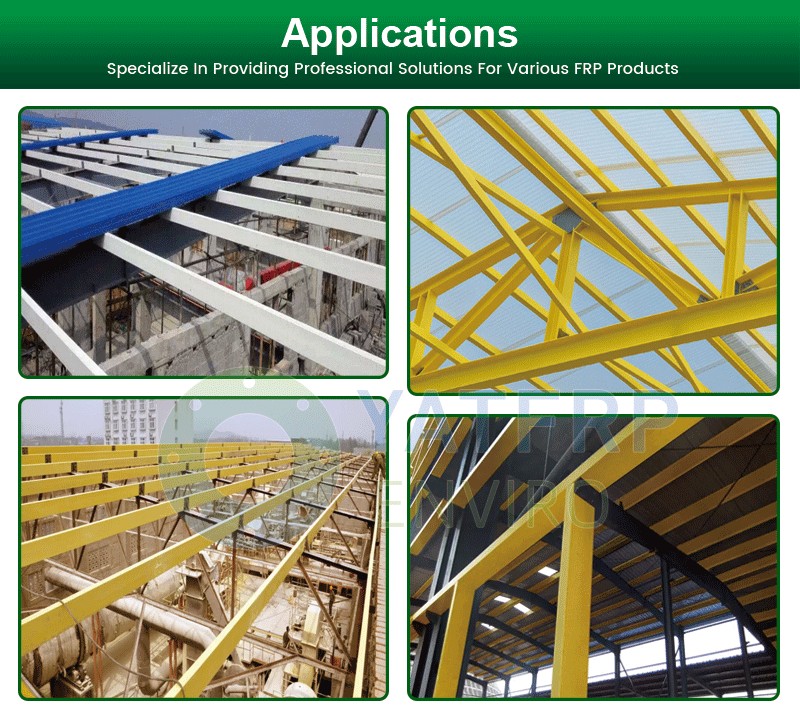

Wide Application Scenarios:
1. Chemical & Fertilizer Plants: Roof purlins, wall support beams under acid/alkali vapor
2. Wastewater & Printing Factories: Corrosion-resistant roof main beams
3. Marine & Coastal Construction: Seaside factory roofing support
4. Livestock & Aquaculture Farms: Pig, poultry and greenhouse roof purlins resistant to ammonia and humidity
5. Power Industry: Insulation roof beams for substations and cooling towers
6. Industrial Workshop Renovation: Replace rusted steel purlins for old corrosive workshops
Why Choose Us?
1. Direct factory supply with multiple automatic pultrusion lines, stable fast delivery for bulk orders

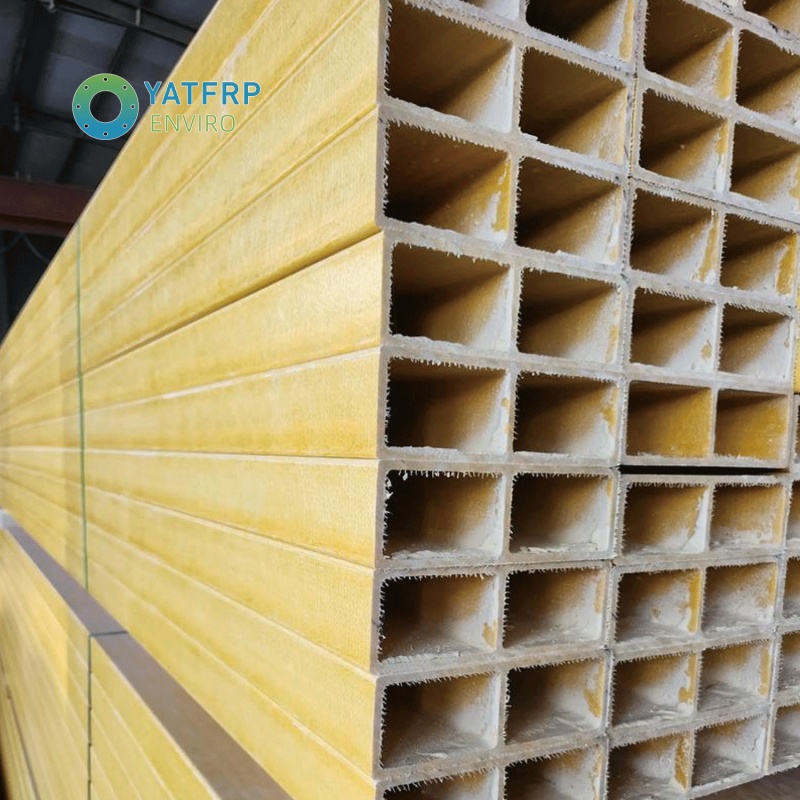

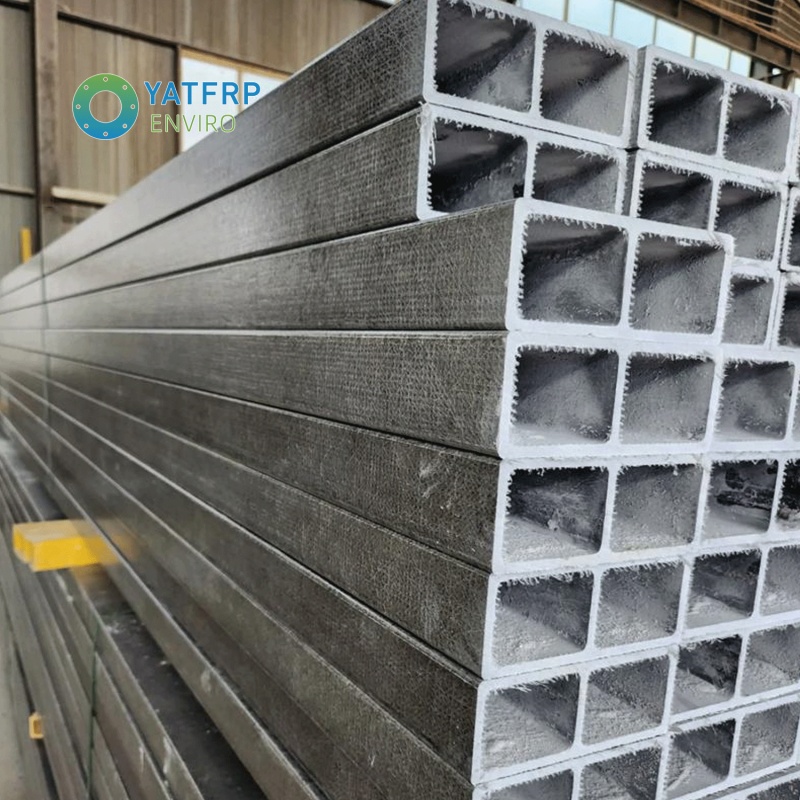

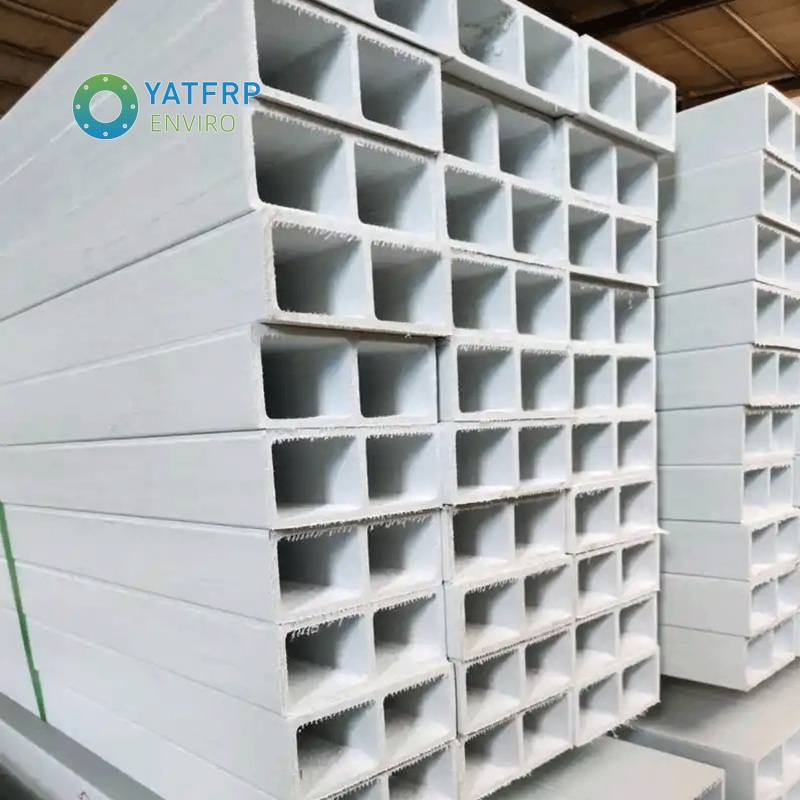

2. Mass stock of mainstream purlin sizes for immediate shipment; new molds for special custom cross-sections
3. Strict raw material inspection + finished bending mechanical testing; official test reports and datasheets provided
4. Professional engineering team offers free span calculation and structural matching design
5. Waterproof plastic film wrapped pallet packaging, anti-scratch and anti-collision during sea & land transit
6. Global OEM & ODM wholesale service, welcome long-term cooperation with distributors and construction contractors
