Pultruded FRP Round Tube

Pultruded FRP Round Tube
Pultruded FRP round tube is smooth hollow circular fiberglass composite via continuous pultrusion molding. Its round shape distributes stress evenly without corner concentration. Lightweight yet sturdy, fully corrosion-proof and electrically insulating, it works over 20 years with zero maintenance. Processable with regular tools, customizable on diameter, wall thickness, color and fire resistance. Widely used as handrails, support posts and tubular frames in marine, chemical, power, construction and agricultural projects.
Product Introduction
FAQ

1111_01

玻璃钢拉挤型材_02


玻璃钢圆管_01


Pultruded FRP round tube is hollow circular fiberglass composite profile manufactured by continuous pultrusion technology. Continuous glass fiber rovings and surface veil are fully saturated with thermosetting resin, then pulled through circular heating molds for integrated curing, forming smooth, uniform round hollow pipes.


Unlike square and rectangular tubes with angular sections, circular FRP tubes deliver even force distribution in all directions, no stress concentration at corners. They serve as perfect substitutes for steel pipes, aluminum tubes and plastic pipes. All products comply with ISO9001 and EN13706 standards. We maintain stock of standard sizes and support full customization on diameter, wall thickness, resin formula and color.


玻璃钢圆管_04


Complete Technical Specifications:

1. Dimension Range

Outer diameter: 16mm – 300mm

Wall thickness: 2mm – 12mm

Standard length per piece: 6m; custom cut lengths are acceptable

Inch-size tubes available for North American market

2. Optional Resin Types

General Polyester: Cost-effective for common indoor and outdoor construction

Vinyl Ester: Excellent anti-corrosion grade for marine and chemical working conditions

Epoxy: Higher mechanical strength for high-standard electrical insulation projects

3. Standard Colors

Safety yellow, white, light grey, dark grey, green, red; custom color matching supported

4. Mechanical Reference Data

Density: 1.8–2.0 g/cm³ | Tensile Strength ≥350MPa | Flexural Strength ≥450MPa

Certifications: ISO9001, EN13706, UL94 flame retardant certificate optional


玻璃钢圆管_05


Core Competitive Advantages:

1. Uniform Circular Stress Distribution, High Structural Stability

Circular cross-section disperses radial force evenly without sharp corner stress cracking. Ideal for handrails, round support posts and tubular frames that bear multi-directional loads. Low density (1/4 of steel) cuts transportation and installation costs, no heavy lifting equipment required.

2. Superior Anti-Corrosion & UV Resistance

100% rust-free, immune to seawater, acid, alkali and industrial solvents. Outer gel-coat layer resists ultraviolet aging, no fading or surface cracking under long-term outdoor exposure, suitable for coastal, chemical, wastewater and aquaculture environments.

3. Complete Electrical & Thermal Insulation

Non-conductive and non-magnetic, eliminating electric leakage risks. Low thermal conductivity blocks heat transfer, widely used for power insulation poles, cable supports and electrical equipment frames.

4. Maintenance-Free, Ultra-Long Service Life

Integral colored resin body needs no periodic painting or anti-rust coating. Stable performance for over 20 years outdoors, drastically reducing later project maintenance expenses.

5. Easy Machining & Rich Custom Options

Can be cut, drilled and bolted with ordinary hand tools, compatible with FRP or stainless steel connectors. Multiple wall thicknesses, outer diameters, solid colors and flame-retardant resin grades are available on request.

6. Optional UL94 Flame Retardant Grade

Vinyl ester fire-retardant version produces low smoke and no molten drips, meeting fire safety standards for factories and public facilities.


玻璃钢圆管应用_01

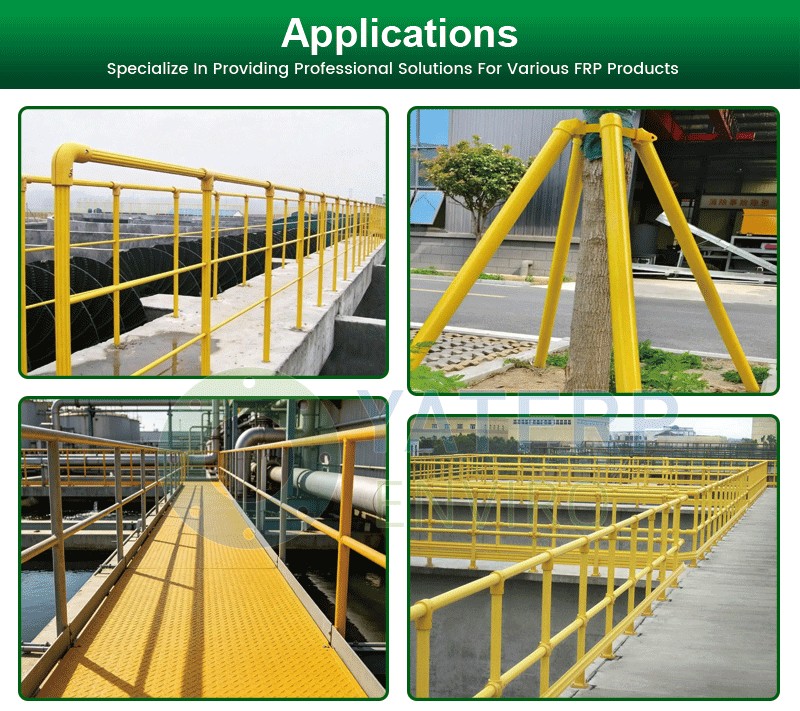

Wide Application Scenarios:

1. Marine & Coastal Engineering: Handrails, dock guard posts, seaside fence columns

2. Chemical & Wastewater Treatment: Equipment support pipes, cooling tower round stands

3. Power & New Energy: Insulation poles, solar bracket vertical supports

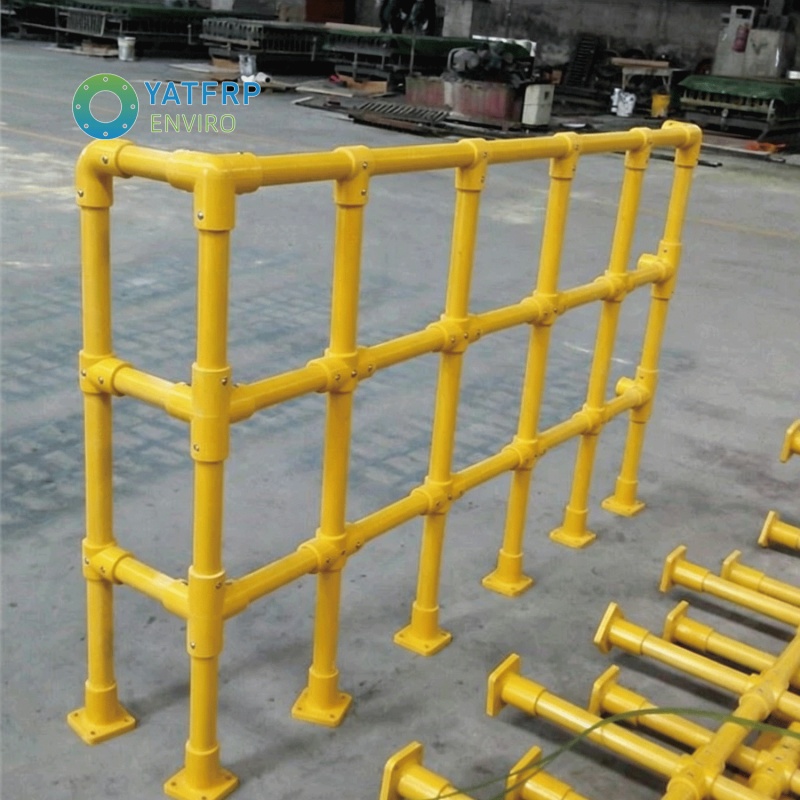

4. Construction & Public Facilities: Stair handrails, park railings, sign support posts

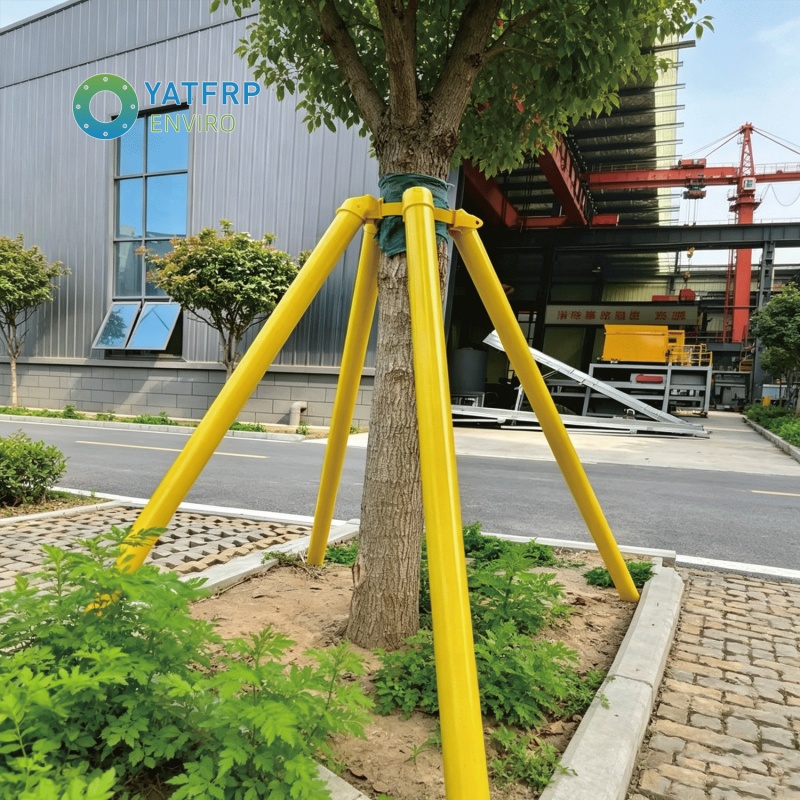

5. Agriculture & Aquaculture: Greenhouse round supports, breeding farm tubular frames

6. Industrial Workshop: Safety barrier handrails, mechanical equipment round support tubes


工厂_01


Why Choose Us?

1. Direct factory supply with multiple automatic pultrusion lines, stable delivery cycle for bulk orders

2. Mass stock of mainstream standard sizes for fast shipment; new molds for special custom diameters

3. Strict raw material inspection and finished product mechanical testing; test reports and data sheets provided

4. Professional engineering team offers free structural design scheme and matching FRP fittings

5. Waterproof pallet packaging to avoid scratches and collision damage during sea and land transit

6. Global wholesale, OEM & ODM service; welcome long-term cooperation with distributors and engineering clients
