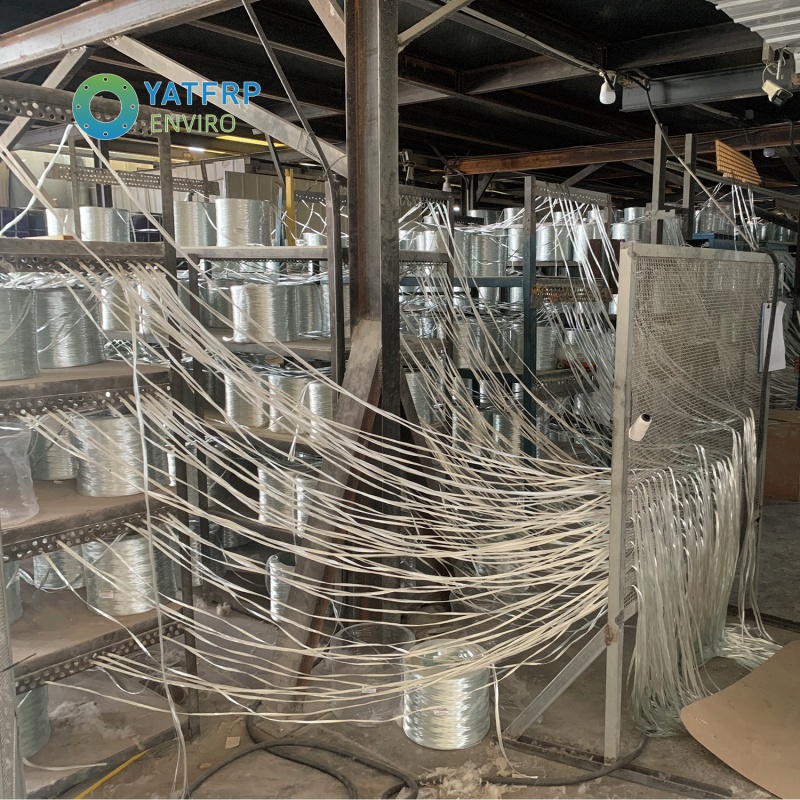

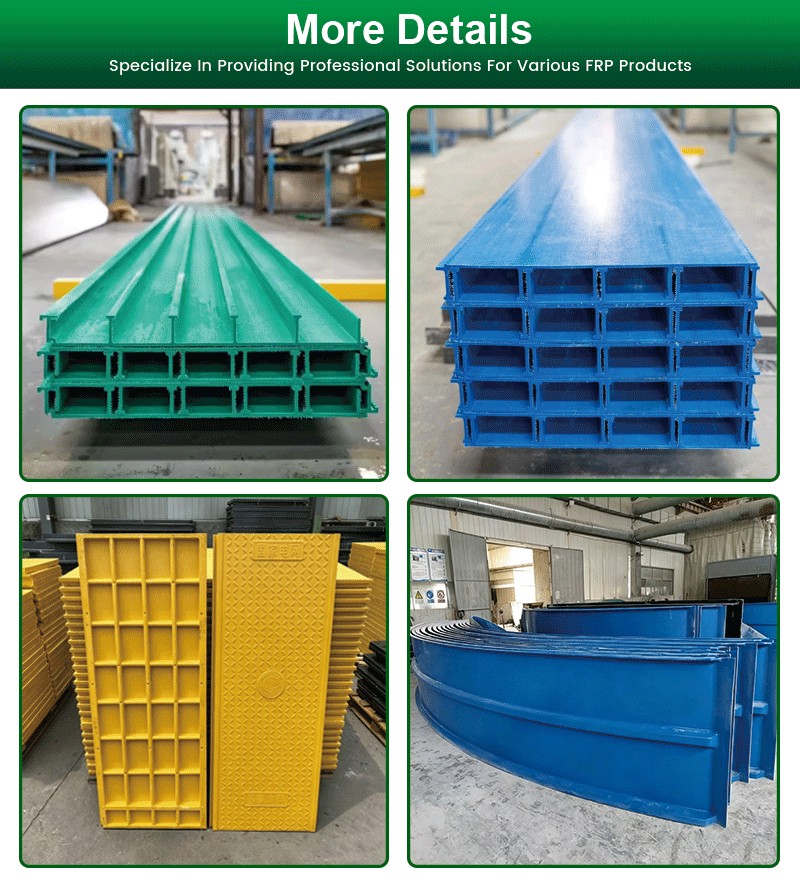

Pultruded FRP cover is a reinforced closed fiberglass composite panel manufactured by continuous one-step pultrusion process. We supply two complete product series: flat solid trench covers and arched gas collection covers.

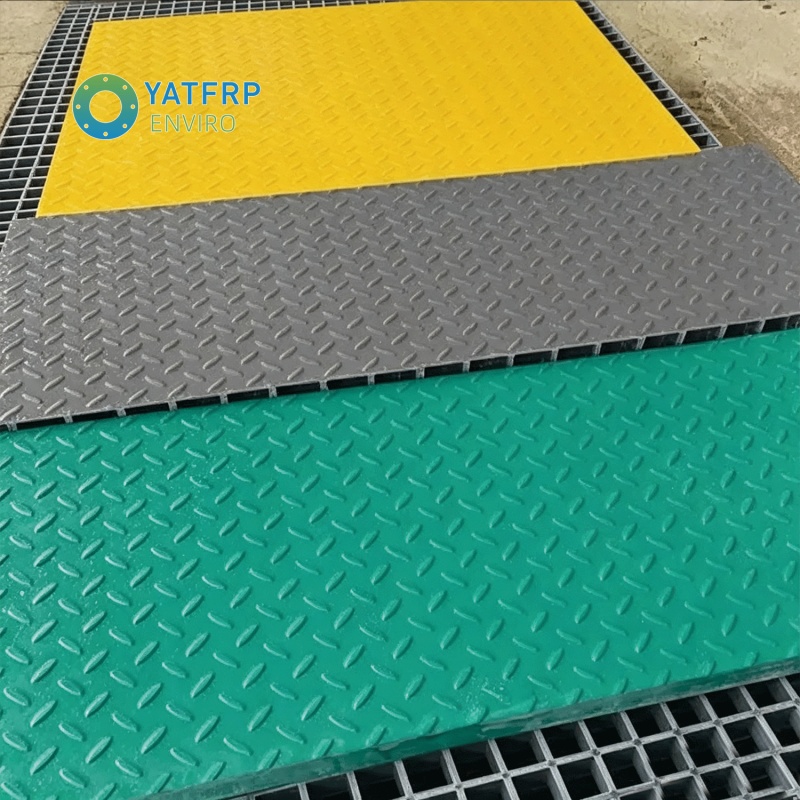

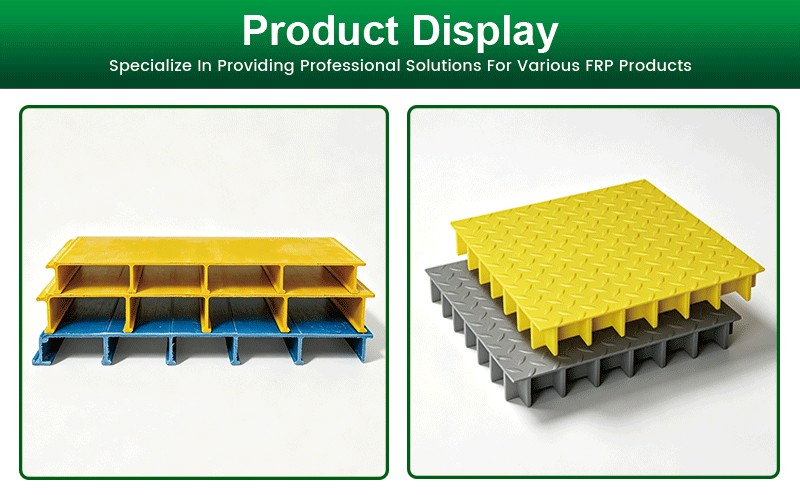

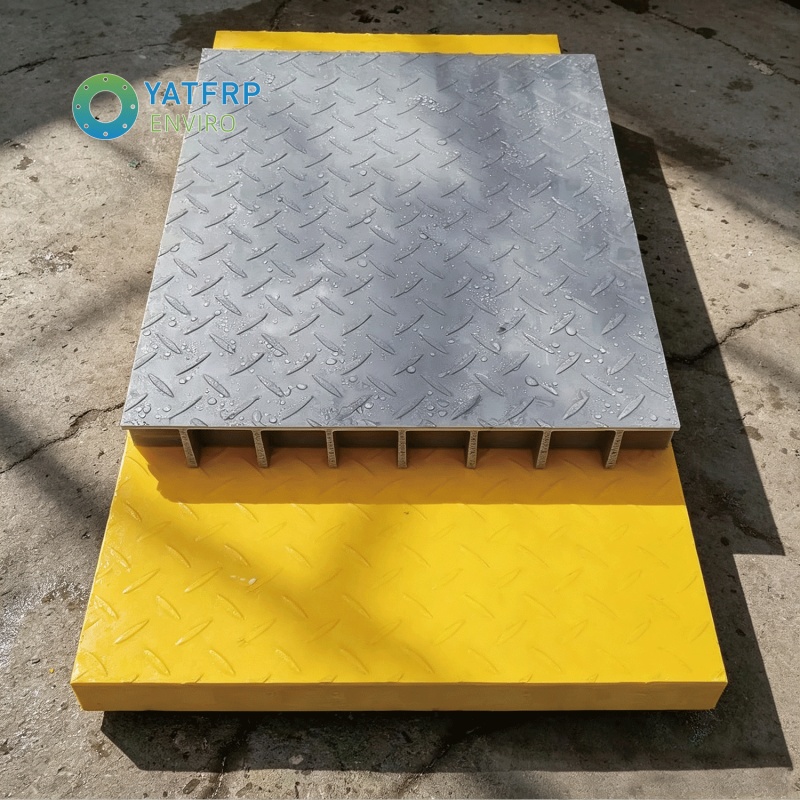

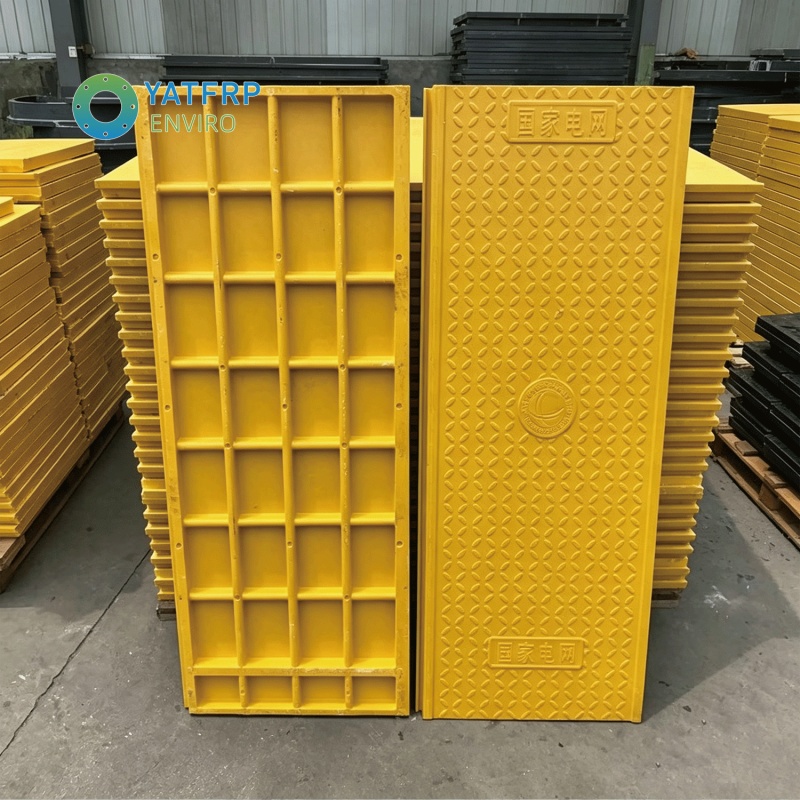

1. Flat FRP trench cover: Integrated internal vertical reinforcing ribs, fully sealed flat surface, available in smooth plain or gritted anti-slip surface, widely used for cable trenches, drainage ditches and workshop walkways.

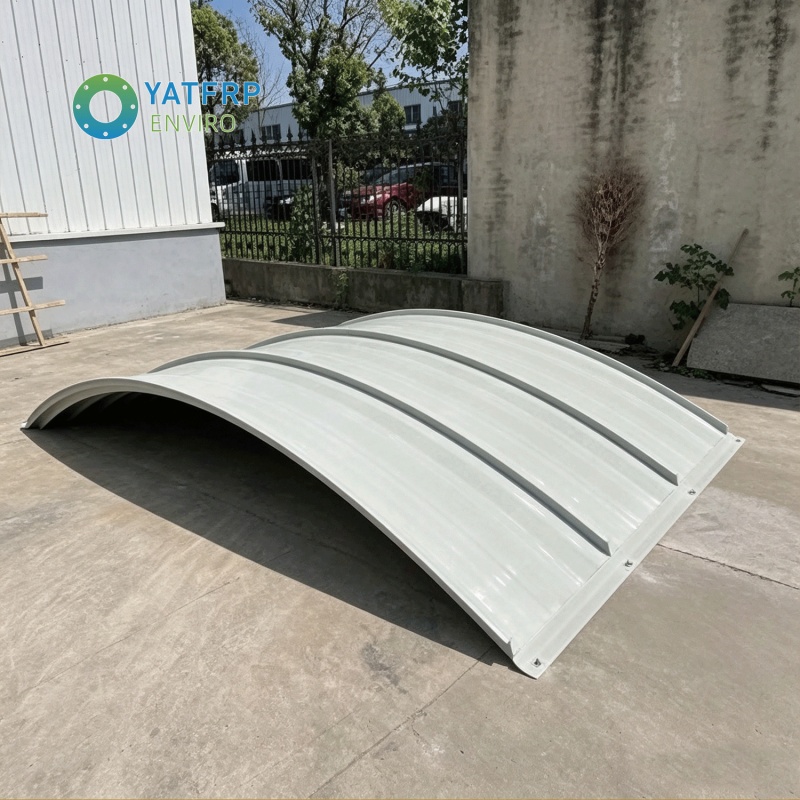

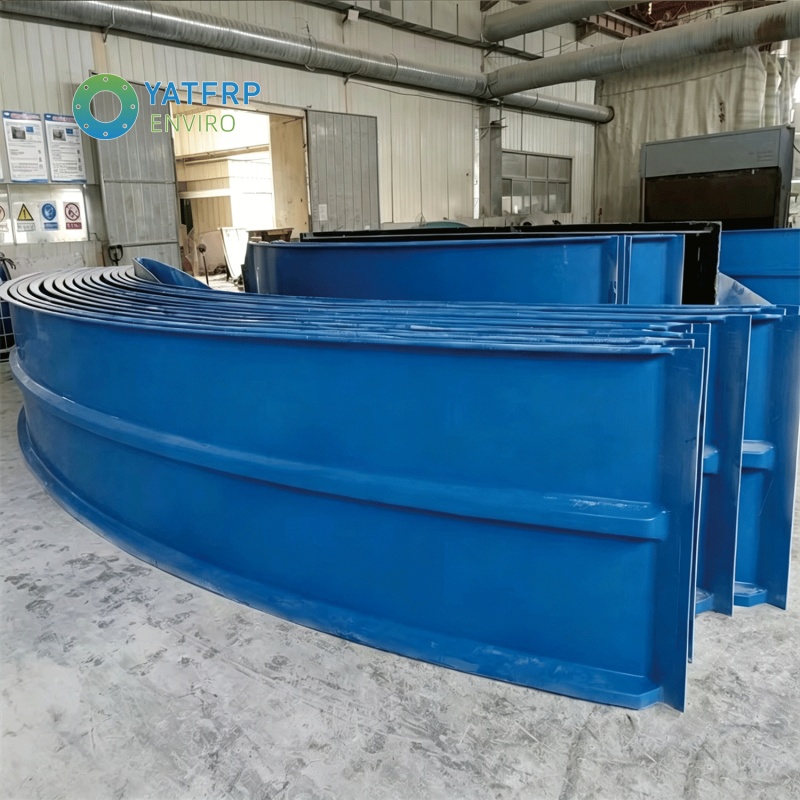

2. Arch FRP gas collection cover: Curved arched pultruded structure with high air tightness, customized arc radian, specially for sewage tank deodorization, biogas pool sealing and waste gas centralized collection projects.
Different from open molded grating, both styles realize full sealing to block odor, toxic gas, sundries falling and cable exposure, ideal replacement of cast iron, steel and concrete covers. All products comply with ISO9001 and EN13706 standards; width, thickness, length, resin formula, surface style and arch radian are fully customizable.
Complete Technical Specifications:
1. Flat Trench Cover Sizes
Single panel width: 300mm, 500mm, 600mm, 1000mm
Overall thickness: 40mm, 50mm, 75mm, 100mm
Standard length: 6m, arbitrary cut length supported
Surface options: Smooth flat / gritted anti-slip diamond surface
2. Arch Gas Collection Cover Sizes
Custom arch radian according to sewage tank width
Cover panel thickness: 5mm–12mm
Single arch span: 1m–12m, unlimited customized length
3. Optional Resin Matrix
General Polyester: Cost-effective for conventional walkways, municipal drainage ditches
Vinyl Ester: High anti-corrosion grade for chemical factories, printing plants, marine projects
Epoxy: Higher mechanical strength for substation cable trenches
4. Standard Colors
Safety yellow, dark gray, green, black, red; custom color matching available
5. Mechanical Reference Data
Density: 1.8–2.0 g/cm³ | Tensile Strength ≥400MPa | Flexural Strength ≥550MPa
Certifications: ISO9001, EN13706, optional UL94 flame retardant certificate
Core Competitive Advantages:
1. Reinforced Rib Structure, High Load Bearing

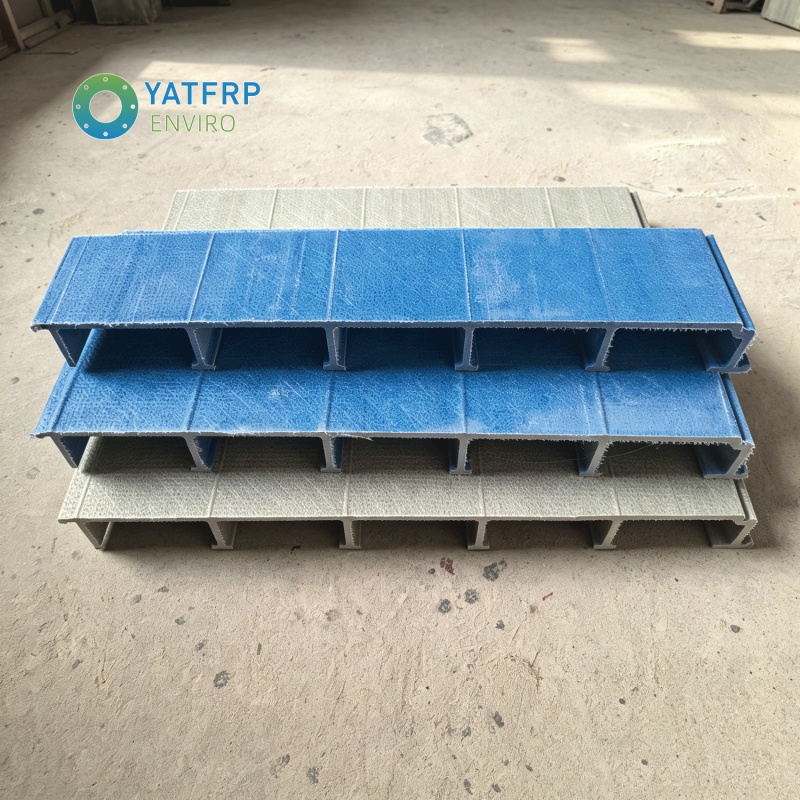

Built-in dense vertical support ribs evenly disperse pressure, resisting bending and collapse under pedestrian and light vehicle loads. Fiber content over 60%, longitudinal rigidity far superior to molded solid plates with same thickness. Only 1/4 weight of cast iron, easy manual lifting without large cranes, cutting logistics and construction labor costs.
2. Ultimate Anti-Corrosion & UV Resistance, Zero Rust
Immune to acid, alkali, sewage, ammonia, coastal salt mist and chemical waste liquid. Outer gel-coat surface blocks ultraviolet aging, no cracking, peeling or fading after long-term outdoor service. Service life exceeds 25 years in chemical plants, wastewater stations, livestock farms and coastal facilities.
3. Full Sealing Design, Safe & Environment Friendly
Flat cover completely covers ditches to prevent staff tripping and sundry leakage; arched cover forms sealed tank space to capture waste gas, avoiding odor diffusion and meeting environmental emission standards. Gritted anti-slip surface optional for oily, slippery factory walkways.
4. 100% Insulation & Anti-Spark Performance
Non-conductive and non-magnetic, no spark generated under impact or trampling, safe for power substations, chemical explosion-proof workshops and cable trench projects. Low thermal conductivity adapts to extreme high and low temperature working environments.
5. Maintenance-Free, Low Full-Lifecycle Cost
Integral pigmented resin body requires no painting, galvanizing or regular anti-rust treatment. Unlike rust-prone metal covers that need frequent replacement, no secondary maintenance after installation, greatly reducing long-term factory operation expenses.
6. Easy Fabrication & Diverse Customization
Processable with standard cutting and drilling tools, assemble via bolts and splicing buckles. Customizable options include various sizes, solid colors, embedded lifting handles, anti-theft locks, tongue-and-groove interlock splicing, and UL94 flame retardant grades. Arch covers support arbitrary radian customization to match different tank widths.

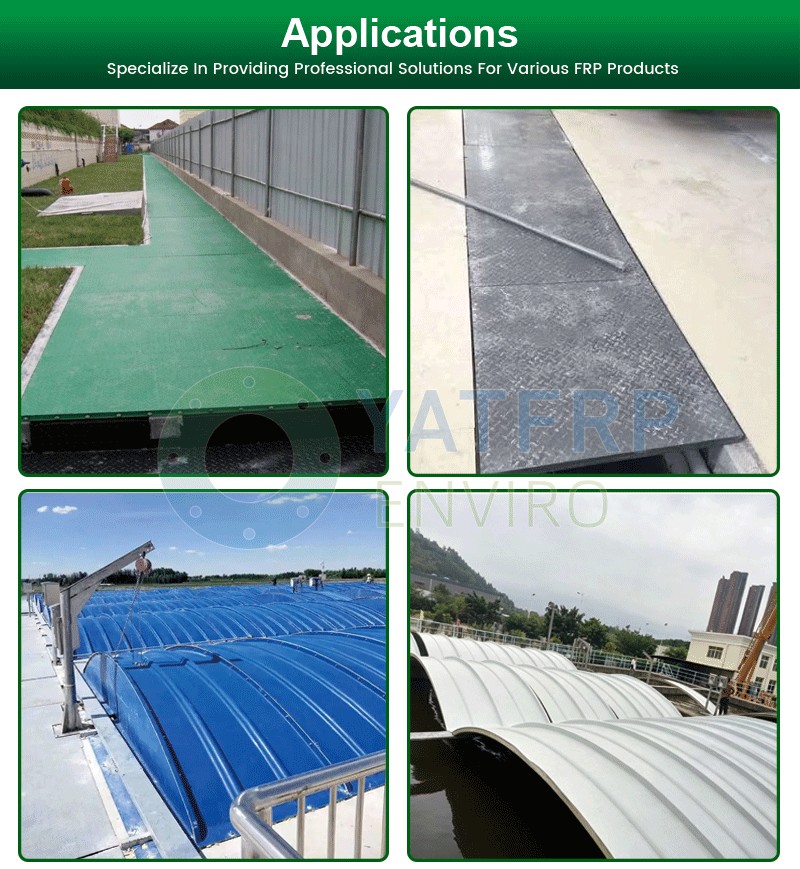

Wide Application Scenarios:
1. Flat FRP Trench Cover
Wastewater Treatment Plants: Drainage ditch covers, sewage tank edge walk panels
Power Substations: Insulated cable trench covers, electrical equipment pit covers
Chemical & Printing Factories: Acid-base workshop channel sealing plates
Municipal & Industrial Workshops: Factory walkway boards, underground pipeline covers
Livestock & Aquaculture Farms: Ammonia-resistant ditch covers for pig and fish farms
Port & Marine Projects: Dock drainage channel anti-corrosion deck panels
2. Arch FRP Gas Collection Cover
Sewage Treatment Tanks: Waste gas deodorization sealed arched covers
Biogas Pools & Anaerobic Tanks: Odor isolation gas collection panels
Chemical Wastewater Ponds: Toxic volatile gas centralized collection covers
Printing & Fertilizer Plants: Corrosion-resistant tank sealing arch plates
Why Choose Us?

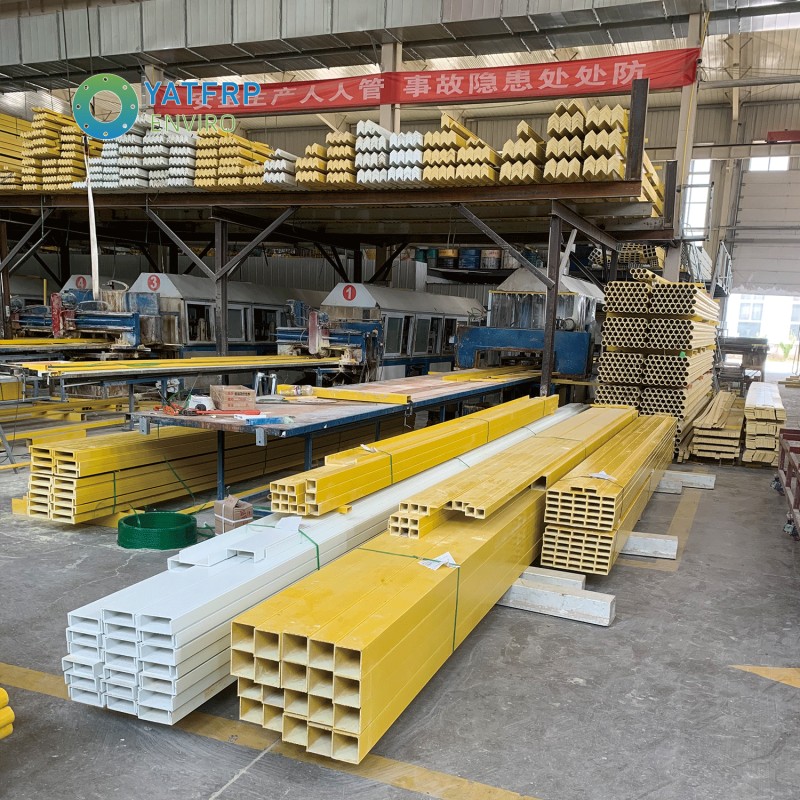

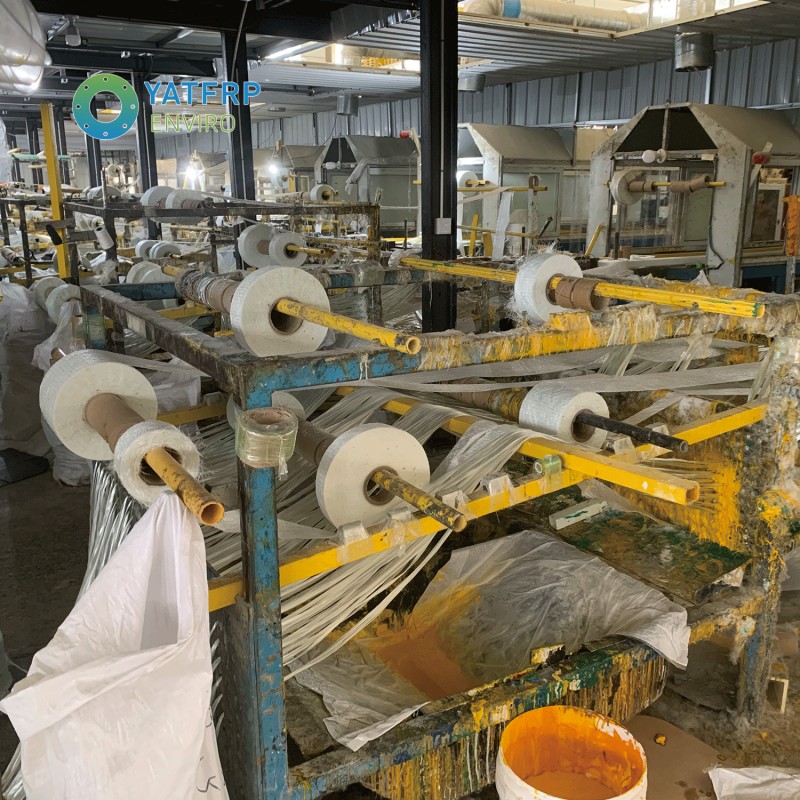

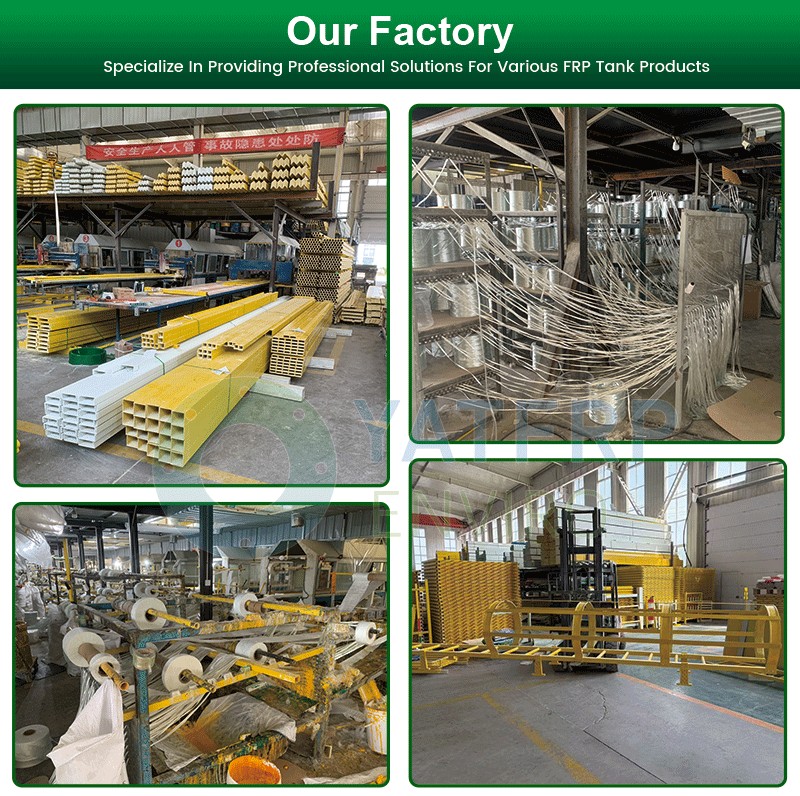

1. Direct factory supply with multiple full-automatic pultrusion production lines, stable fast delivery for bulk wholesale orders.
2. Mass stock of mainstream flat cover sizes for immediate shipment; new molds open for special width, thickness and custom arch radian.
3. Strict raw material inspection and finished load-bearing bending test, official test reports and technical datasheets provided.
4. Professional engineering team offers free span load calculation, arch radian design and matching connection fittings.

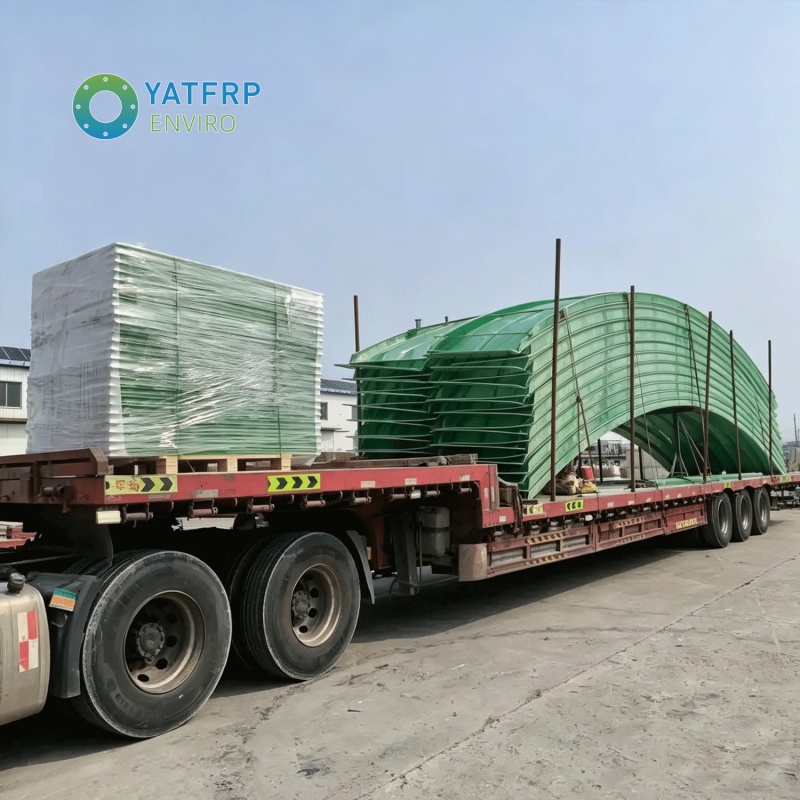

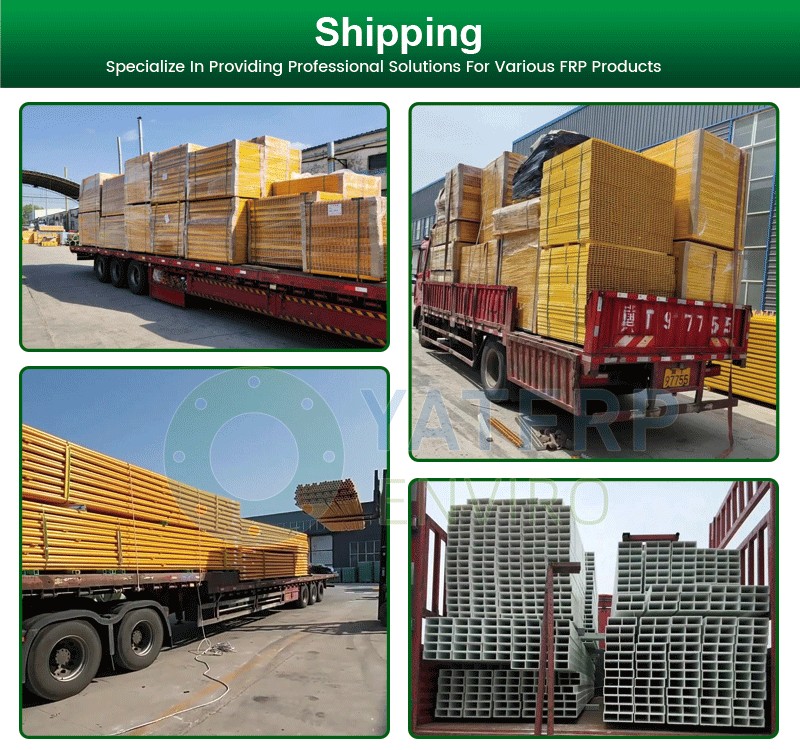

5. Waterproof plastic film wrapped pallet packaging, anti-scratch and anti-collision during sea and land transportation.
6. Global OEM & ODM wholesale service, support custom logo, handles, locks and interlock structures, welcome long-term cooperation with distributors and large engineering contractors.
